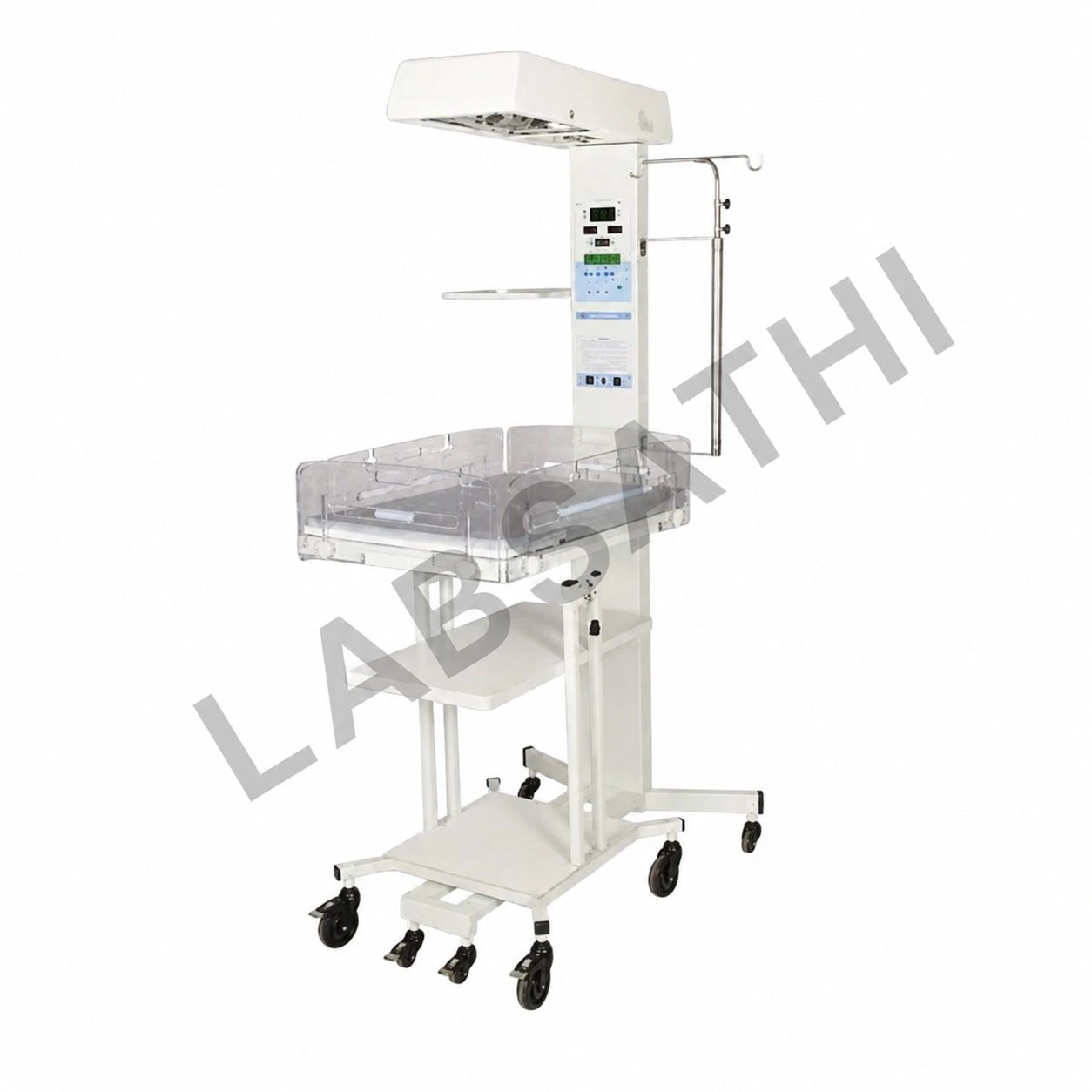

Infant Radiant Warmer with Detachable Baby Cradle

The Infant Radiant Warmer is designed to provide controlled thermal support for newborn care. Equipped with a microprocessor-based temperature controller, multiple operating modes, and a comprehensive safety alarm system, it ensures effective temperature management and continuous monitoring. The unit features a detachable baby cradle, stainless steel baby tray, X-ray cassette holder, infusion rod, monitor tray, and provision for under-surface phototherapy.

Key Features

1. Fixed-height warmer with detachable baby cradle.
2. Mounted on four 100 mm wheels, including two wheels with brakes.
3. Stainless steel baby tray with waterproof zipped mattress (density approx. 21–25 kg/m³).
4. Continuous head-up and head-down positioning facility.
5. X-ray cassette holder.
6. Collapsible and lockable side supports made of unbreakable polycarbonate material.
7. Slots provided for sensor and ventilator tubing.
8. Side tray for monitor placement.
9. Stainless steel infusion rod with provision for syringe and infusion pumps.
10. Lower shelf below the baby tray for under-surface phototherapy.

Dimensions

Display System

1. LED display for Skin Temperature, Air Temperature, Set Temperature, and Heater Power (%).
2. Display resolution of 0.1°C.
3. LCD display for operating modes, alarm messages, timer, and skin temperature in °F.

Temperature Accuracy

1. Thermistor-based temperature sensor.
2. Accuracy of ±0.2°C.
3. Temperature calibration not required.

Operating Modes

Skin Servo Mode

1. Temperature Range: 34°C to 38°C
2. Resolution: 0.1°C

Air Mode

1. Temperature Range: Room Temperature to 39°C
2. Resolution: 0.1°C

Manual Mode

1. Adjustable heater power from 0% to 100%.
2. Adjustment increments of 5%.
3. Operating duration: 15 minutes.

Pre-Warm Mode

1. Designed to pre-warm the cradle before placing the baby.
2. Adjustable heater power from 0% to 25%.
3. Adjustment increments of 5%.
4. Operating duration: 30 minutes.
5. No alarm activation during pre-warm mode.

Electrical Specifications

1. Microprocessor-based temperature controller with Pre-Warm, Manual, Skin Servo, and Air modes.
2. Keypad lock facility.
3. Swivelling overhead heater box.
4. 650 Watt ceramic heater positioned within a parabolic reflector.
5. Safety grill for heater protection.
6. Halogen observation light (12V/50W).
7. Operating Voltage: 220–240 VAC.
8. Frequency: 50 Hz.
9. Maximum Power Consumption: 800 Watts.

Comprehensive Safety Alarm System

The warmer is equipped with audio alarms featuring a 10-minute mute facility and visual alarm messages displayed on the LCD.

Applications

1. Neonatal care units
2. Newborn thermal management
3. Continuous infant temperature monitoring
4. Under-surface phototherapy support
5. Patient monitoring and infusion support applications
