NIC201A Infant Radiant Warmer with Fixed Baby Cradle & Drawers | Microprocessor-Based Neonatal Care System

The NIC201A Infant Radiant Warmer is a high-performance neonatal thermal care system designed to provide a safe, stable, and controlled environment for newborns in NICUs, maternity wards, pediatric units, and hospitals. Engineered with advanced microprocessor technology, this radiant warmer ensures precise temperature regulation while offering maximum convenience for healthcare professionals.

Key Features

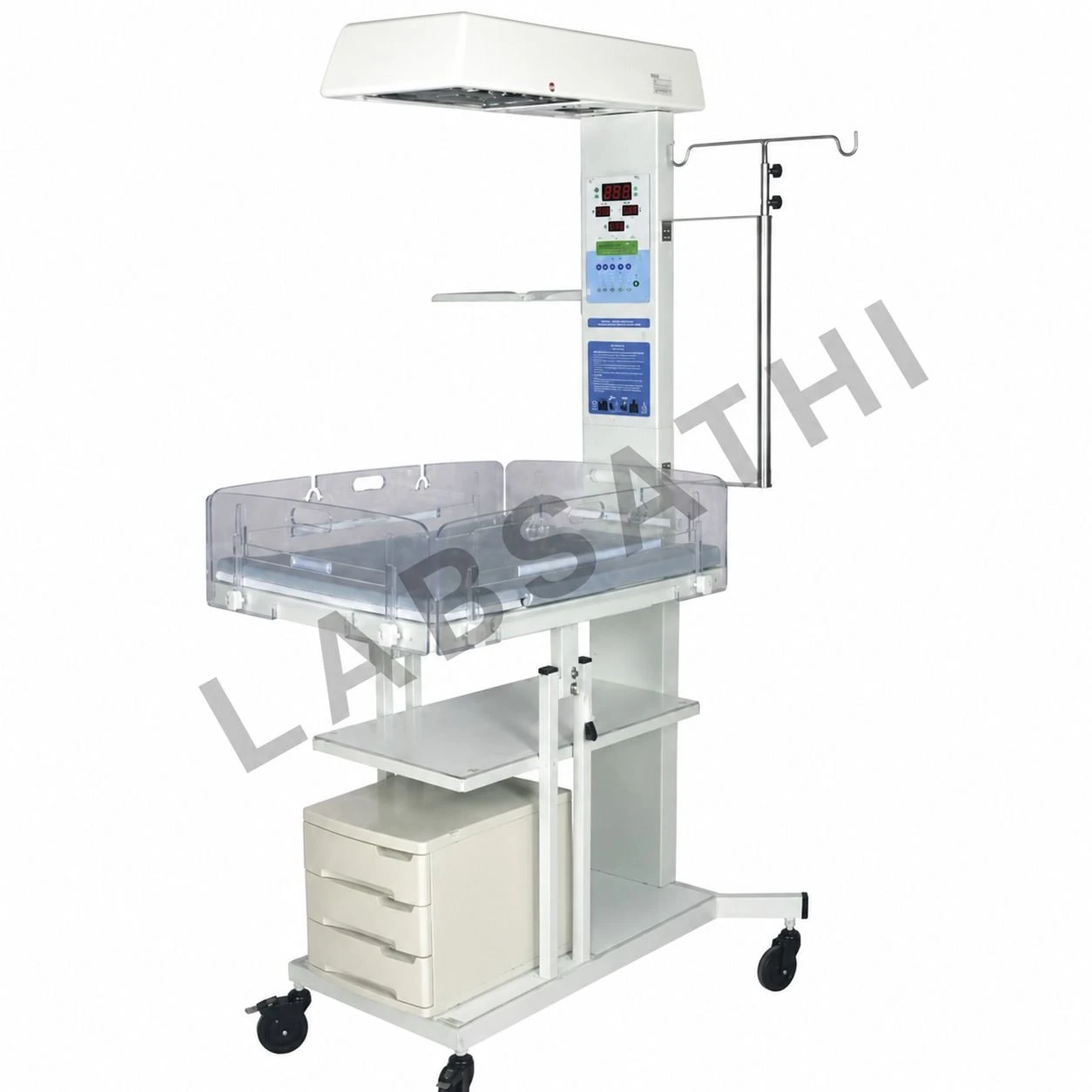

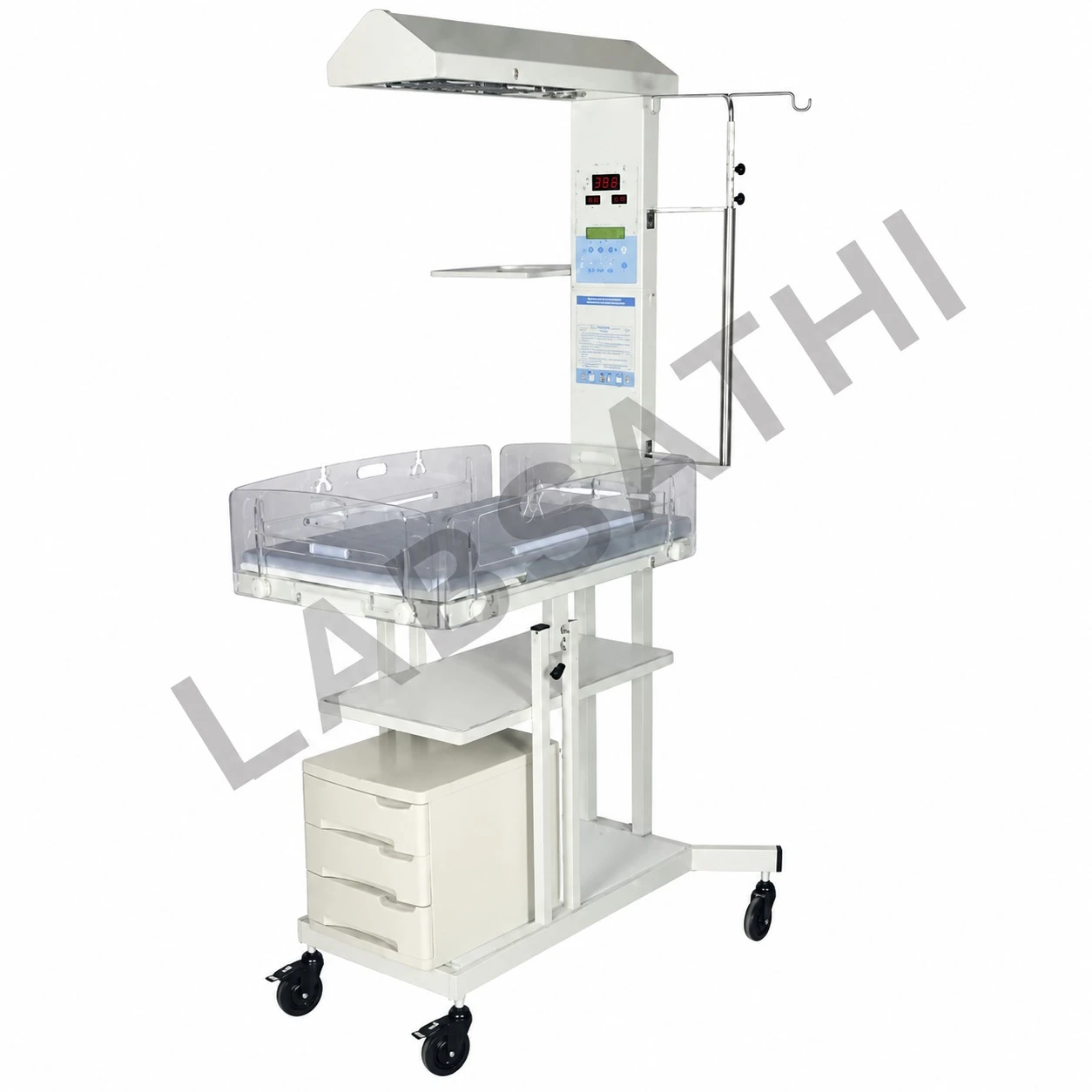

✔ Fixed-height warmer with integrated baby cradle and three spacious storage drawers

✔ Mounted on four 100 mm heavy-duty wheels with two locking brakes for easy mobility and stability

✔ Stainless steel baby tray with waterproof zipped mattress (density approx. 21–25 kg/m³)

✔ Continuous head-up and head-down positioning facility

✔ Built-in X-ray cassette holder for convenient diagnostic procedures

✔ Collapsible and lockable side supports made from unbreakable polycarbonate material

✔ Dedicated slots for sensor cables and ventilator tubing management

✔ Side-mounted tray for patient monitor placement

✔ Stainless steel infusion rod with provision for syringe and infusion pumps

✔ Lower shelf designed to support under-surface phototherapy systems

Dimensions

Advanced Temperature Control System

The warmer features a microprocessor-based temperature controller with:

1. Pre-Warm Mode
2. Manual Mode
3. Skin Servo Mode
4. Air Mode

Display System

1. LED display for Skin Temperature, Air Temperature, Set Temperature, and Heater Power (%)
2. Resolution: 0.1°C
3. LCD display for operating modes, alarm messages, timer, and skin temperature in °F

Temperature Accuracy

1. Thermistor-based temperature sensor
2. Accuracy: ±0.2°C
3. No temperature calibration required

Operating Modes

Skin Servo Mode

1. Temperature Range: 34°C to 38°C
2. Resolution: 0.1°C

Air Mode

1. Temperature Range: Room Temperature to 39°C
2. Resolution: 0.1°C

Manual Mode

1. Heater Power: 0–100% (5% increments)
2. Timer Duration: 15 Minutes

Pre-Warm Mode

1. Heater Power: 0–25% (5% increments)
2. Timer Duration: 30 Minutes
3. No alarm activation during pre-warming

Heater Assembly

1. Swiveling overhead heater box
2. 650W ceramic heater integrated within a parabolic reflector
3. Safety protection grill
4. 12V / 50W halogen observation light for clear infant monitoring

Electrical Specifications

1. Operating Voltage: 220–240 VAC
2. Frequency: 50 Hz
3. Maximum Power Consumption: 800 Watts

Comprehensive Safety Alarm System

The warmer is equipped with audio alarms featuring a 10-minute mute facility and visual alarm indications displayed on the LCD.

Applications

Ideal for Neonatal Intensive Care Units (NICU), Special Newborn Care Units (SNCU), Pediatric Departments, Maternity Hospitals, Medical Colleges, Nursing Institutions, and Healthcare Training Centers.

Reliable thermal protection, advanced monitoring, and comprehensive safety features make the NIC201A Infant Radiant Warmer an essential solution for modern neonatal care.
