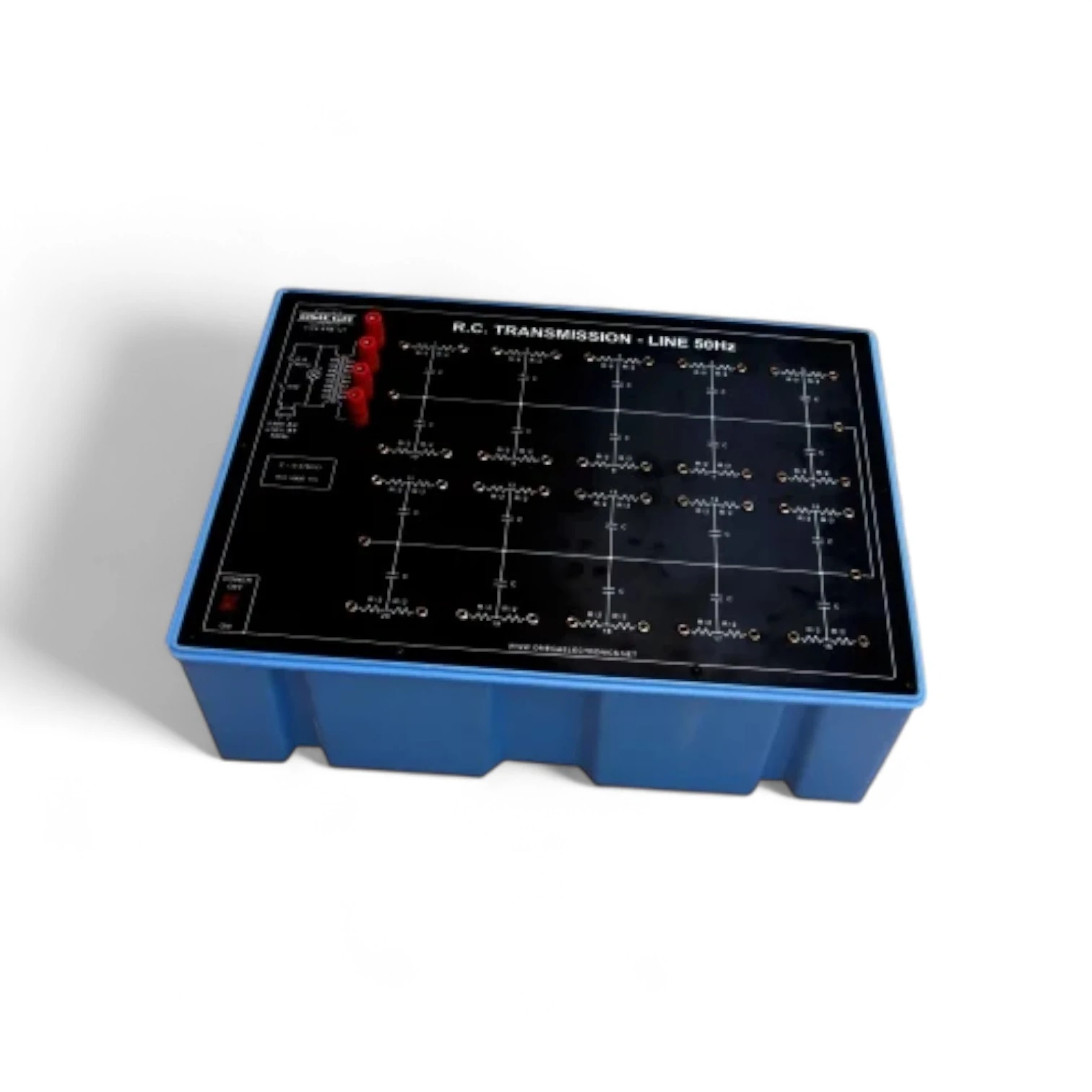

ETB-127 (Model Study of R.C. Transmission Line at 50 Hz with power supply)

(0) 0 Reviews 0 Orders 0 Wish listed

₹15,000.00

Quantity :
Total price :
  (Tax : )

The ETB-127 trainer is designed for studying the R.C. (Resistor-Capacitor) transmission line characteristics under 50 Hz AC conditions, simulating the distributed nature of real transmission lines. It demonstrates concepts such as signal propagation delay, attenuation, phase shift, and voltage distribution along the line.

This model includes a built-in regulated power supply and modular R-C sections, allowing students to vary the line length and study the electrical behavior practically. Ideal for electrical and electronics engineering labs focused on transmission line theory and signal behavior in passive networks.

Key Features:

  • Simulates R.C. transmission line behavior at 50 Hz

  • Built-in regulated power supply

  • Modular R-C sections for customizable experiments

  • Study of attenuation, phase shift, and voltage distribution

  • Supports visualization of real transmission line effects

  • Suitable for network analysis and electrical power systems education
