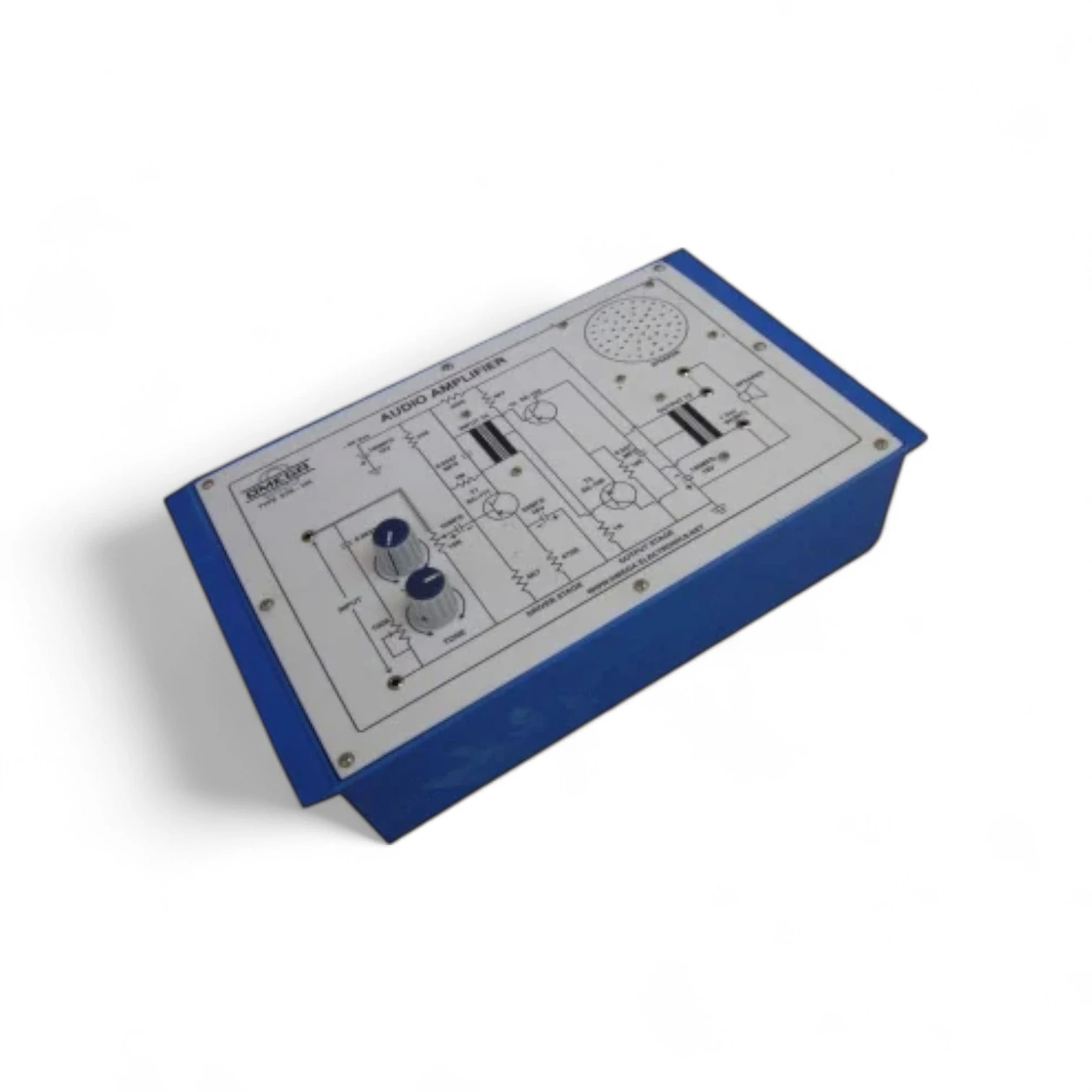

ETB-125 (Model Audio Amplifier (5W, 4 Ohms) with power supply)

(0) 0 Reviews 0 Orders 0 Wish listed

₹15,000.00

Quantity :
Total price :
  (Tax : )

ETB-125 – Audio Amplifier (5W, 4 Ohms) with Power Supply is a compact and efficient trainer designed to study the operation of a low-power audio amplifier. This model demonstrates how audio signals are amplified to drive a 4-ohm speaker load using standard audio amplifier circuitry.

The trainer features a 5-watt output stage, suitable for classroom demonstrations and experiments in analog electronics and audio systems. With built-in regulated power supply and speaker terminals, students can analyze gain, frequency response, distortion, and efficiency of the amplifier. It is ideal for practical understanding of amplification stages, coupling, and feedback mechanisms.

Key Features:

  • 5W audio amplifier suitable for 4-ohm speaker output

  • Built-in power supply for hassle-free operation

  • Clear test points for input/output waveform analysis

  • Supports study of gain, bandwidth, and signal distortion

  • Ideal for analog, communication, and audio electronics labs

  • Compact and rugged design suitable for continuous lab use
