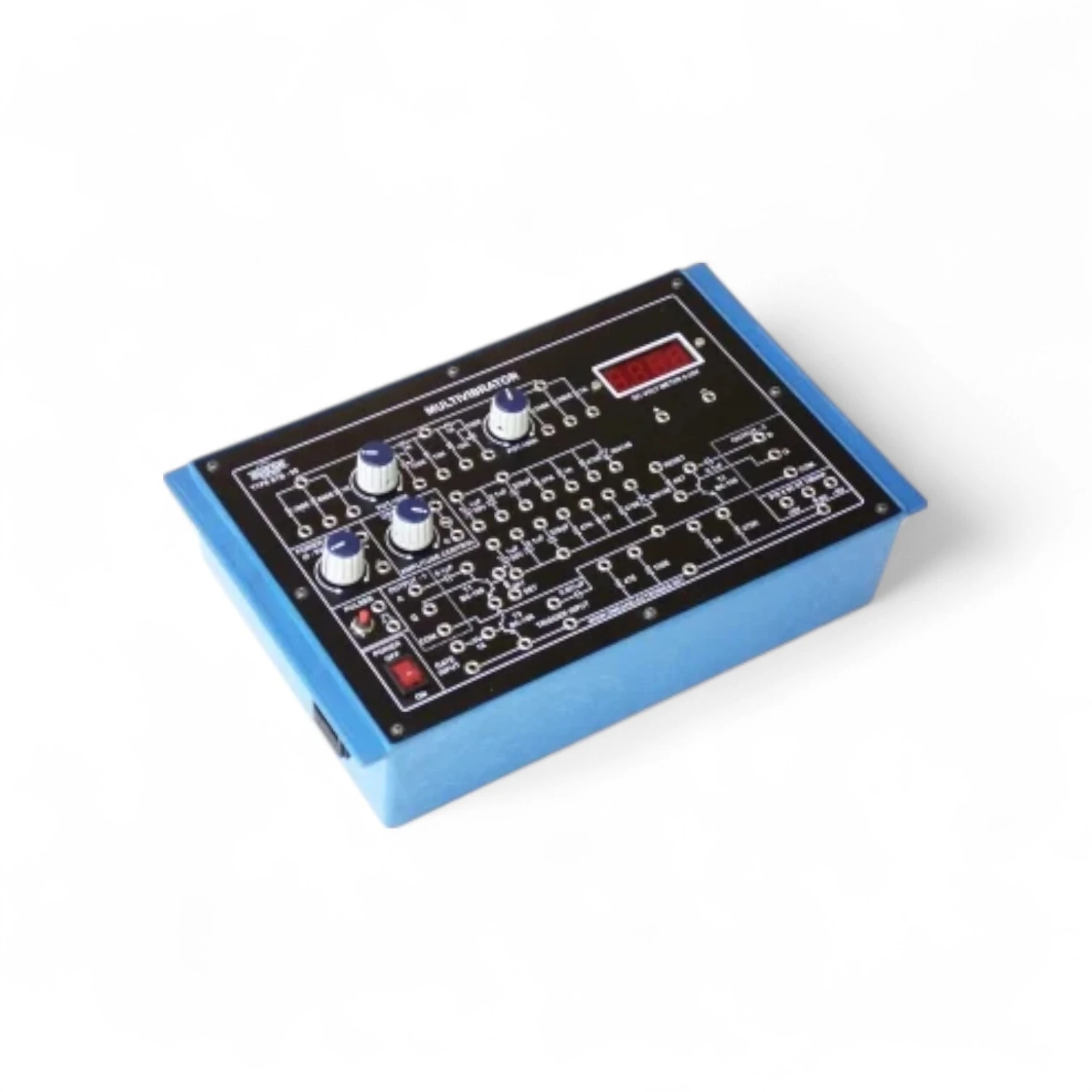

ETB-095 – Multivibrators with Power Supply and 1 Meter is a comprehensive trainer designed to demonstrate the behavior and operation of different types of multivibrator circuits, including astable, monostable, and bistable configurations. These circuits are essential building blocks in digital and timing applications. The trainer includes a regulated power supply and 1 built-in meter to monitor voltages, enabling learners to analyze timing characteristics, waveform shapes, and triggering behavior.

It is ideal for use in analog electronics and digital logic labs, where understanding pulse generation, waveform shaping, and circuit timing is essential.

Key Features:

• Demonstrates astable, monostable, and bistable multivibrator circuits

• Built-in regulated DC power supply

• 1 meter for real-time voltage measurement

• Clearly labeled front panel for ease of experimentation

• Supports timing analysis and pulse waveform observation

• Test points provided for CRO connection and waveform monitoring

• Ideal for analog, digital, and pulse electronics labs
