ETB-083 (Model Semi-Conductor Devices Characteristics with power supply and 3 m

(0) 0 Reviews 0 Orders 0 Wish listed

₹25,000.00

Quantity :
Total price :
  (Tax : )

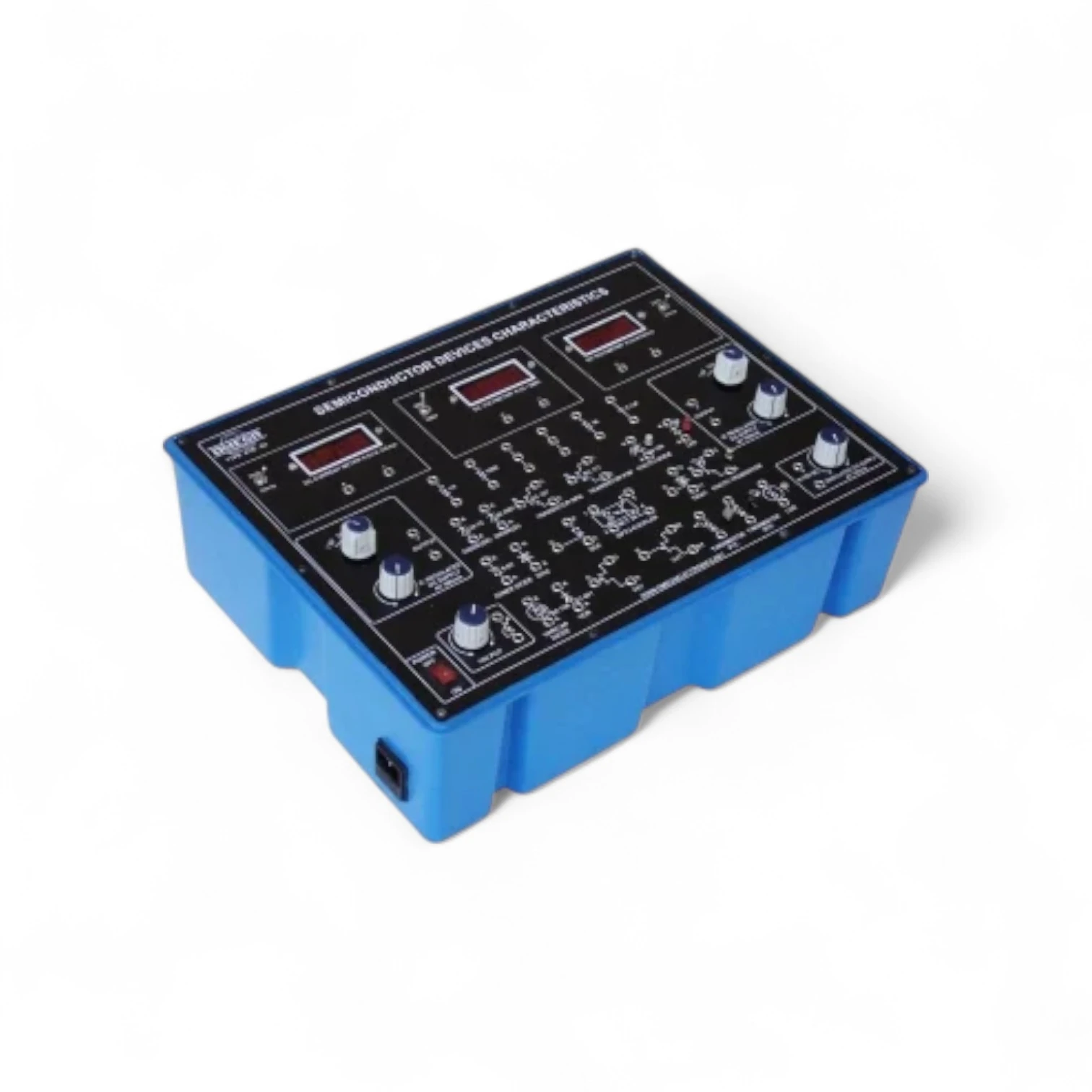

ETB-083 – Semiconductor Devices Characteristics with Power Supply and 3 Meters is a comprehensive educational trainer designed to study the characteristics of various semiconductor devices such as diodes, Zener diodes, BJTs (NPN/PNP), and FETs. This model enables detailed analysis of input/output, forward/reverse bias, and transfer characteristics. Equipped with a built-in regulated power supply and three high-precision meters, the trainer allows simultaneous monitoring of voltage and current parameters, making it ideal for both analog electronics and semiconductor physics laboratories.

Key Features:

  • Facilitates study of characteristics of multiple semiconductor devices:

    • PN Junction Diode

    • Zener Diode

    • Bipolar Junction Transistors (BJT)

    • Field Effect Transistors (FET)

  • Built-in regulated DC power supply for biasing

  • 3 built-in meters for accurate voltage and current measurement

  • Well-labeled front panel with clearly defined test points

  • Suitable for V-I characteristic plotting and analysis of various device modes

  • Sturdy and student-friendly construction for academic use

  • Essential for electronics, semiconductor, and device physics labs
