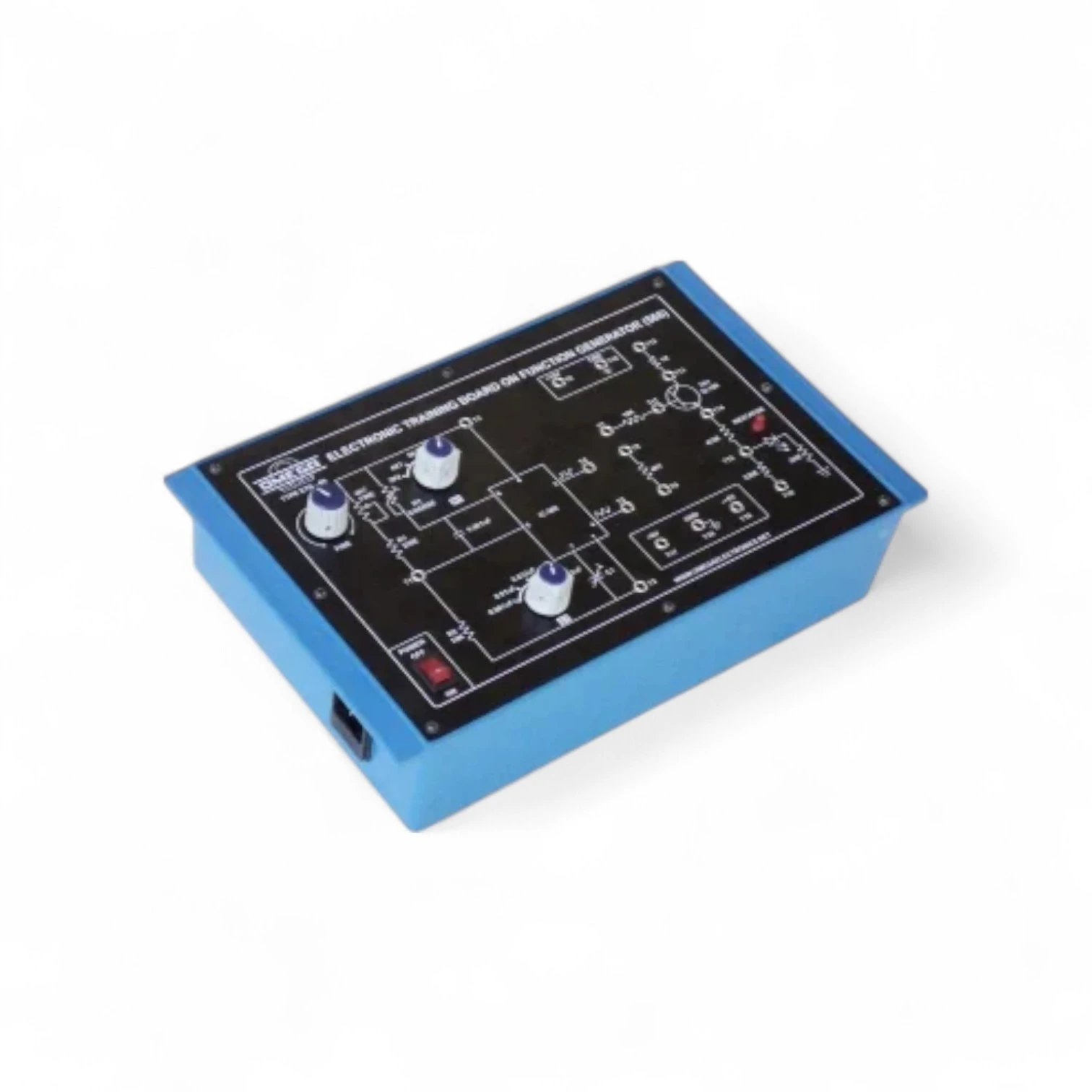

ETB-069 (Model Function Generator (using IC-566) with power supply)

(0) 0 Reviews 0 Orders 0 Wish listed

₹12,000.00

Quantity :
Total price :
  (Tax : )

ETB-069 – Function Generator (Using IC-566) with Power Supply is an educational trainer designed to demonstrate the working of a function generator circuit based on the IC-566 voltage-controlled oscillator (VCO). This trainer provides sine, square, and triangular waveforms over a defined frequency range, making it ideal for signal generation in analog and digital electronic experiments. With a built-in regulated power supply and clearly marked output terminals, it is perfectly suited for both learning and lab testing environments.

Key Features:

  • Based on IC-566 VCO for generating sine, square, and triangular waveforms

  • Frequency range typically adjustable via onboard controls

  • Built-in regulated power supply for standalone use

  • Stable and low-distortion waveform generation

  • Useful for testing amplifiers, filters, and waveform analysis circuits

  • Compact and student-friendly design with clear front panel labeling

  • Ideal for analog electronics, communication systems, and waveform study labs
