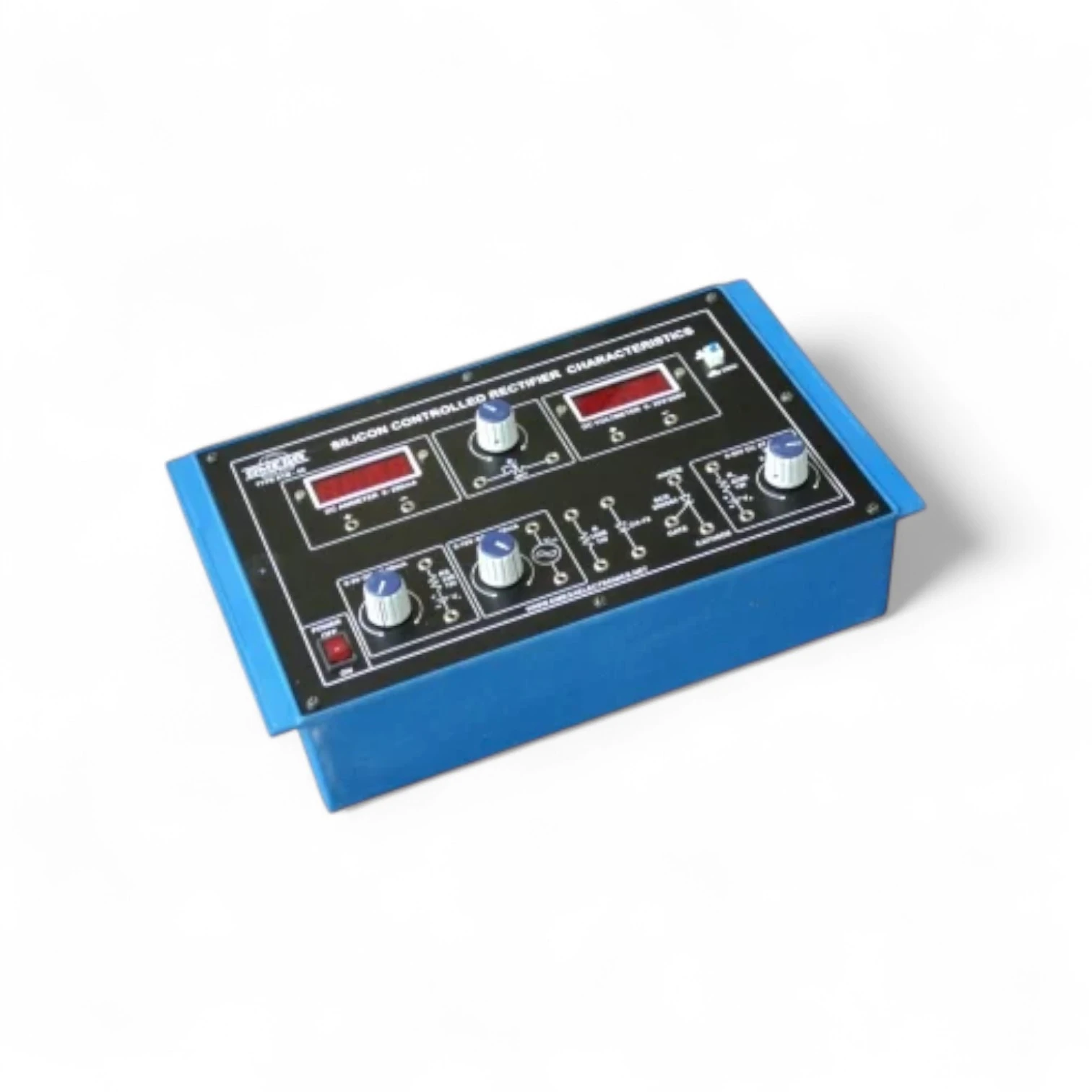

ETB-055 Silicon Controlled Rectifier Characteristics with power supply and 2 me

(0) 0 Reviews 0 Orders 0 Wish listed

₹12,000.00

Quantity :
Total price :
  (Tax : )

The ETB-055 trainer is designed for the practical study of the static characteristics of a Silicon Controlled Rectifier (SCR). This model enables learners to explore the V-I characteristics, latching behavior, and triggering mechanisms of the SCR under different gate conditions.

It comes equipped with a built-in regulated power supply and 2 precision meters for measuring voltage and current across the SCR terminals. This trainer is ideal for hands-on training in power electronics, semiconductor devices, and industrial control labs, helping students grasp the operation and control of thyristor-based devices.

Key Features:

  • Study of SCR V-I characteristics

  • Observation of latching and holding current

  • Built-in power supply and 2 measuring meters

  • Terminals for external connections and oscilloscope probes

  • Ideal for semiconductor device labs and power electronics education

  • Compact, durable, and educational-institute friendly
