ETB-004 (Model Single Stage pentode Amplifier (V.V.))

(0) 0 Reviews 0 Orders 0 Wish listed

₹13,000.00

Quantity :
Total price :
  (Tax : )

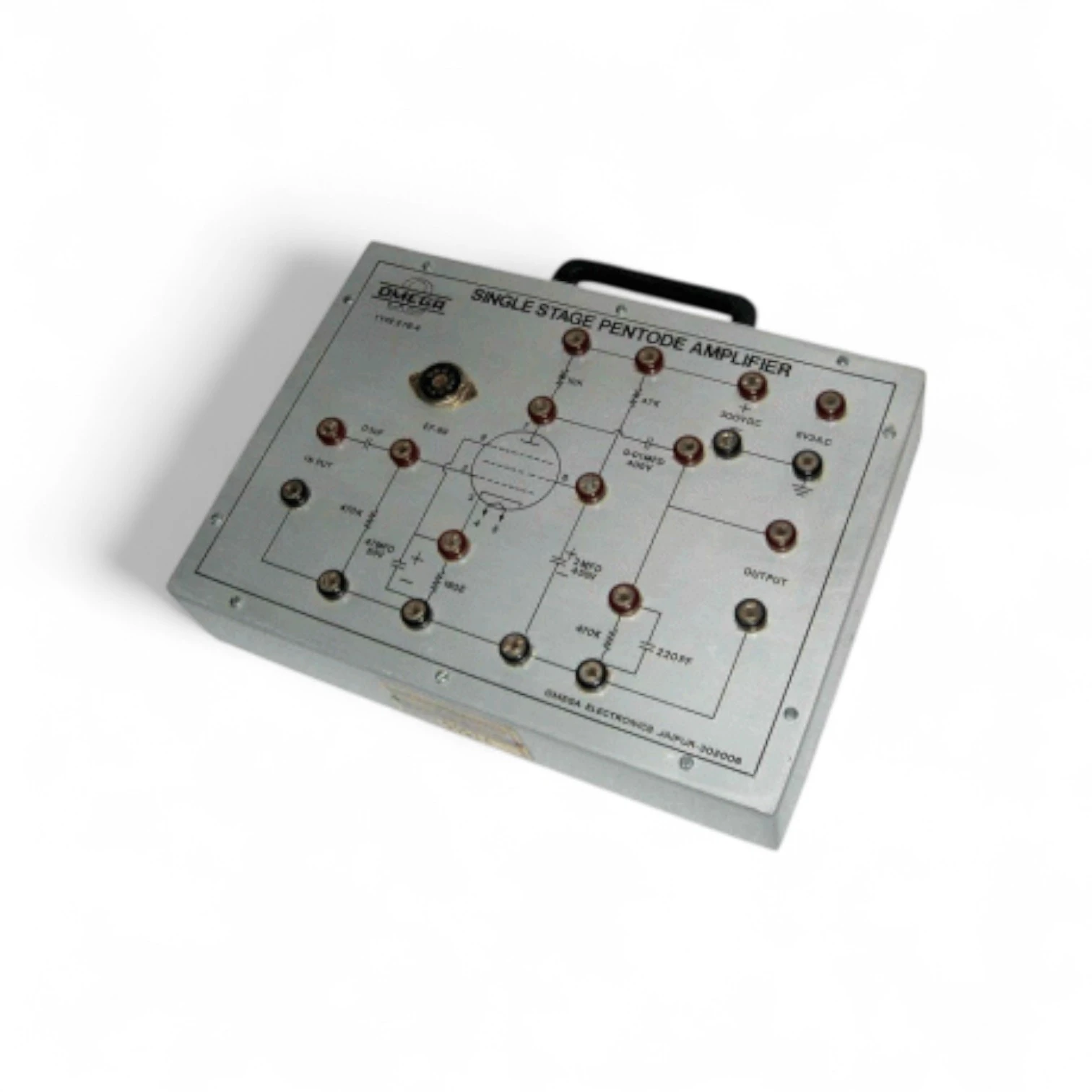

The ETB-004 Single Stage Pentode Amplifier Trainer is specifically designed to demonstrate the working and characteristics of a single-stage vacuum tube amplifier using a pentode valve. This setup enables students to study the amplification process, gain measurement, and dynamic characteristics of pentodes in electronic circuits.

Equipped with a variable voltage (V.V.) power supply, this trainer is ideal for analyzing the superior gain and performance of pentodes compared to triodes. It provides clearly marked terminals for oscilloscope and multimeter connections, making it a reliable tool for physics and electronics labs.

Key Features:

  • Demonstrates single-stage pentode amplifier circuit

  • Study of amplification characteristics, frequency response, and gain

  • Built-in variable voltage (V.V.) power supply

  • Easy-to-use, safe, and educational design

  • Ideal for vacuum tube experiments in academic institutions
