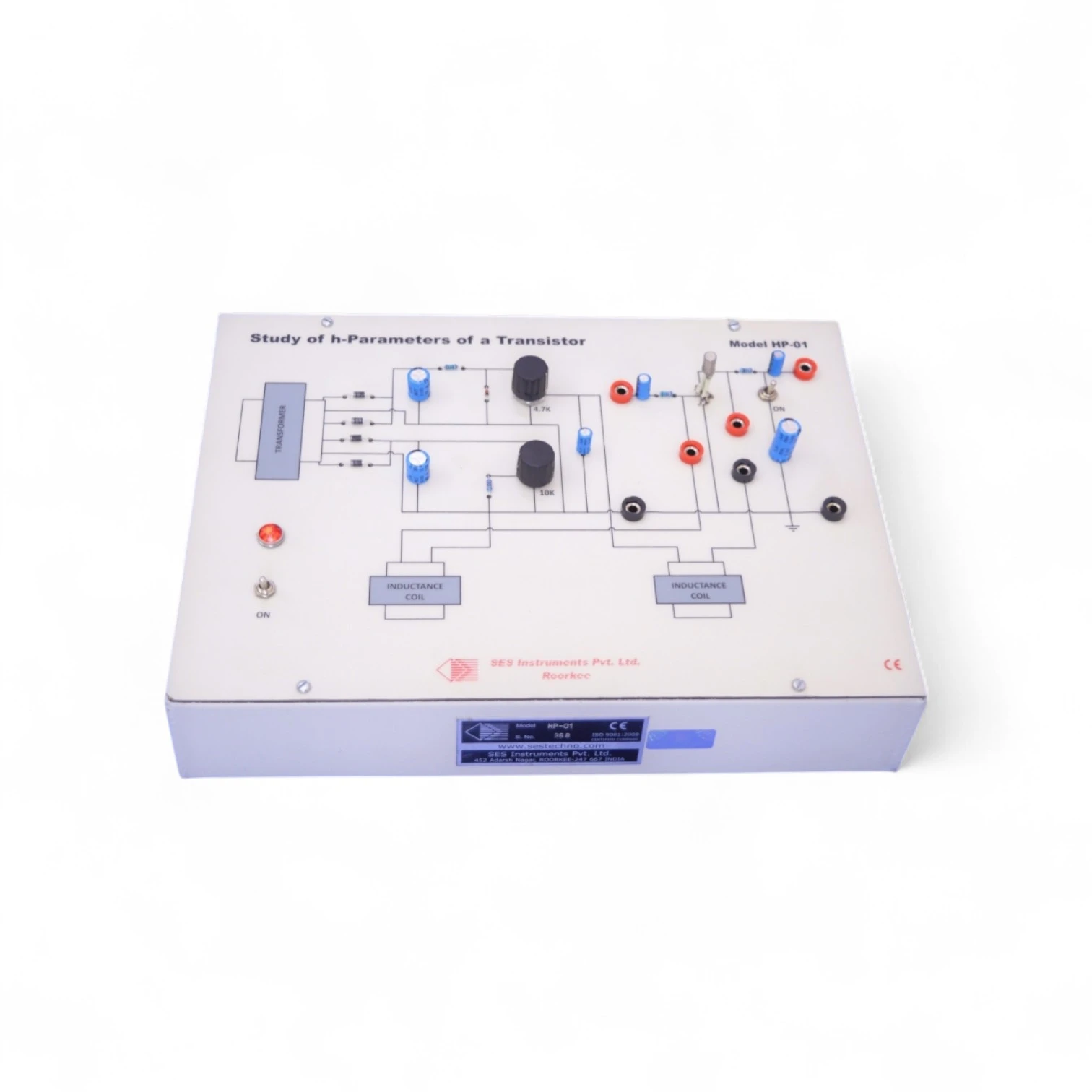

The HP‑01 is a laboratory trainer specifically designed for the detailed study and measurement of hybrid parameters (h-parameters) of a bipolar junction transistor (BJT) in common base, common emitter, and common collector configurations. This trainer is ideal for electronics engineering students, helping them understand small-signal models and transistor behavior under AC analysis.

The setup includes onboard biasing circuitry, test points, and measuring sockets to allow students to connect multimeters or CROs to measure input impedance, output admittance, current gain, and voltage gain. The unit also includes clearly labeled circuitry, component placement, and a supplied transistor under test, making it convenient for both demonstration and hands-on experimentation.

Key Features

• Complete trainer for measuring h-parameters of a transistor

• Supports CB, CE, and CC configurations

• Built-in biasing circuitry and test sockets

• Clear layout for easy understanding of circuit operation

• Facilitates measurement of hi, hf, ho, and hr parameters

• Ideal for undergraduate electronics laboratories

• Durable, portable, and safe to use in classroom environments

Applications

• Study of small-signal transistor models

• Measurement of hybrid parameters in practical experiments

• Understanding input/output characteristics of BJT

• Hands-on lab sessions in analog electronics courses

• Comparison of theoretical and experimental results
