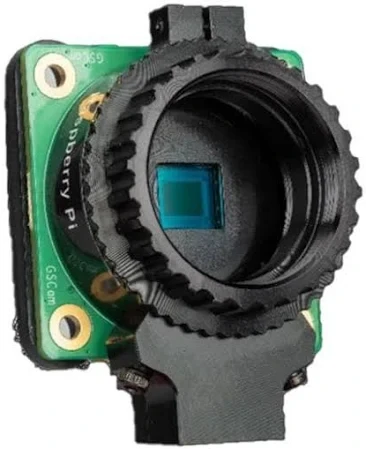

The Raspberry Pi Global-Shutter USB Camera is a high-performance imaging module designed for computer vision, robotics, industrial research, and IoT applications where capturing fast-moving objects without motion blur is essential. Unlike rolling shutter cameras, it uses a global shutter sensor, ensuring that all pixels are exposed simultaneously, resulting in distortion-free images even in dynamic scenes.

With USB 3.0 connectivity, the camera offers high-bandwidth data transfer and seamless integration with Raspberry Pi, NVIDIA Jetson, Arduino (with host adapters), and PCs. It supports popular vision frameworks such as OpenCV, ROS, and AI-based image processing libraries, making it a versatile tool for real-time research and embedded vision applications.

Technical Specifications (typical model):

• Sensor Type: Global Shutter CMOS

• Resolution: 1.6 MP (1456 × 1088) or 2 MP (depending on variant)

• Pixel Size: 3.45 µm × 3.45 µm

• Shutter Type: Global Shutter (no motion distortion)

• Frame Rate: Up to 120 fps (at reduced resolution), ~60 fps at full resolution

• Interface: USB 3.0 (UVC compliant, plug-and-play)

• Lens Mount: C/CS-mount for interchangeable lenses

• Operating Voltage: 5V via USB

• Compatibility: Raspberry Pi (with USB), NVIDIA Jetson, Windows, Linux, and embedded systems

• Dimensions: Compact PCB or enclosed module (varies by vendor)

Features:

• Global shutter sensor eliminates motion artifacts

• High frame rate for real-time tracking and robotics

• USB 3.0 plug-and-play interface with wide OS compatibility

• Supports interchangeable lenses for flexible field of view and optical performance

• Robust SDK and driver support for OpenCV, ROS, and AI applications

Common Research & IoT Use Cases:

• Robotics: Machine vision, object tracking, SLAM, and navigation in dynamic environments

• Drones/UAVs: High-speed aerial imaging without rolling shutter distortion

• Industrial R&D: Conveyor belt inspection, quality control, and precision measurement

• AI & Computer Vision Research: Motion capture, gesture recognition, and deep learning datasets

• IoT Systems: Smart surveillance, traffic monitoring, and automation research

The Raspberry Pi Global-Shutter USB Camera is a highly valuable tool for researchers, developers, and IoT engineers who require accurate, blur-free imaging for fast-motion environments, making it an excellent choice for robotics and vision-driven applications.
