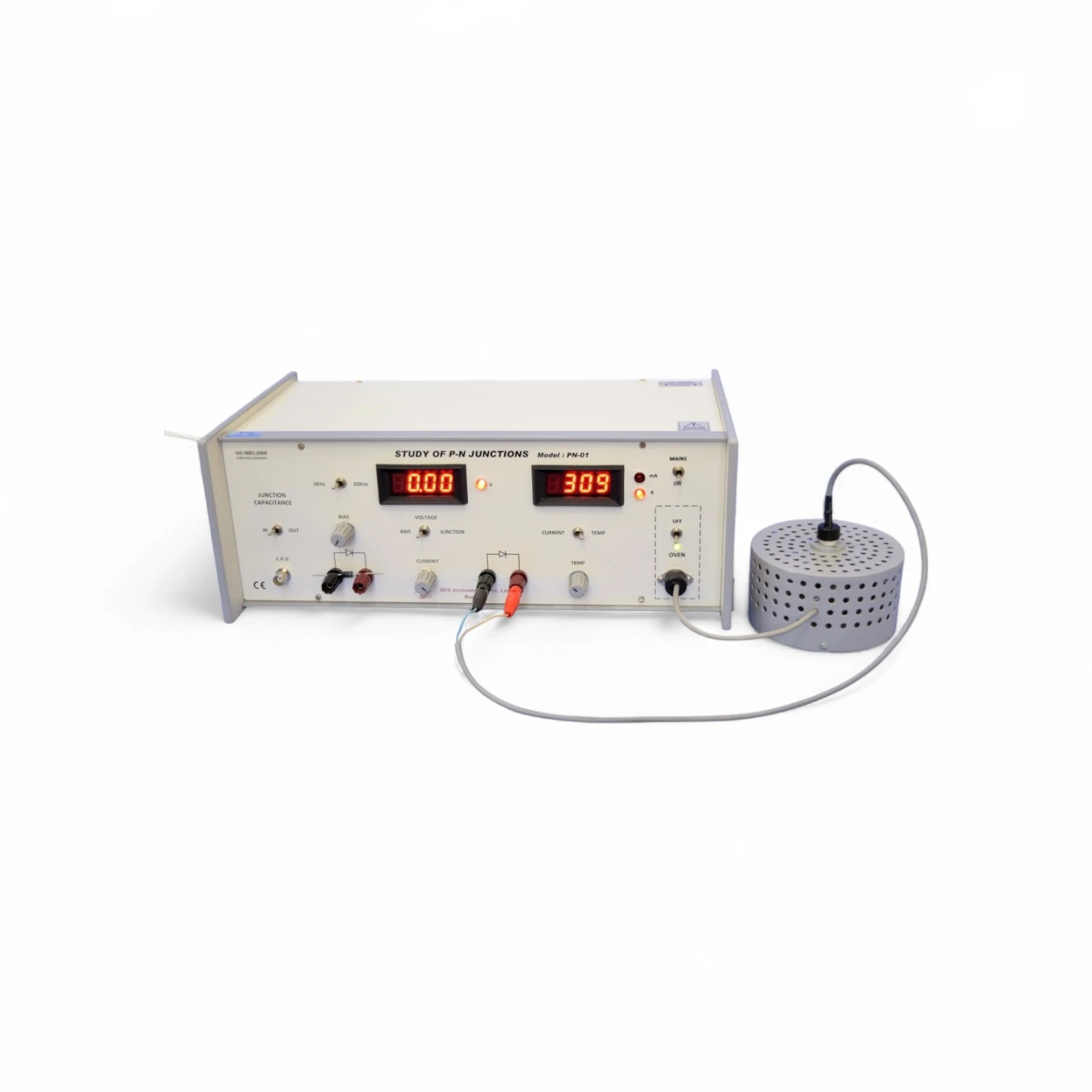

The PN-01 is a compact, lab-ready experimental setup for studying the fundamental behavior of P-N junction diodes. Designed for educational institutions, this trainer allows students to analyze the V-I characteristics of a diode in both forward and reverse bias modes using built-in components and measurement terminals.

With onboard P-N junction diode, regulated DC power supply, and digital voltmeter/ammeter terminals, the PN-01 offers a hands-on approach to understanding semiconductor physics. It's an ideal solution for foundational electronics training in physics, engineering, and polytechnic courses.

Key Features

• Dedicated P-N junction diode mounted on the panel

• Study of forward and reverse bias characteristics

• Built-in variable DC power supply

• Clearly labeled test points for voltage and current measurements

• Compact and durable construction for lab use

• Comes with experiment manual and connection accessories

Applications

• Analysis of semiconductor diode behavior

• Understanding forward and reverse bias conduction

• Plotting V-I characteristics curves

• Basic electronics and semiconductor device training

• Ideal for B.Sc., M.Sc., Diploma, and Engineering students
