Standard Technical Specification:-

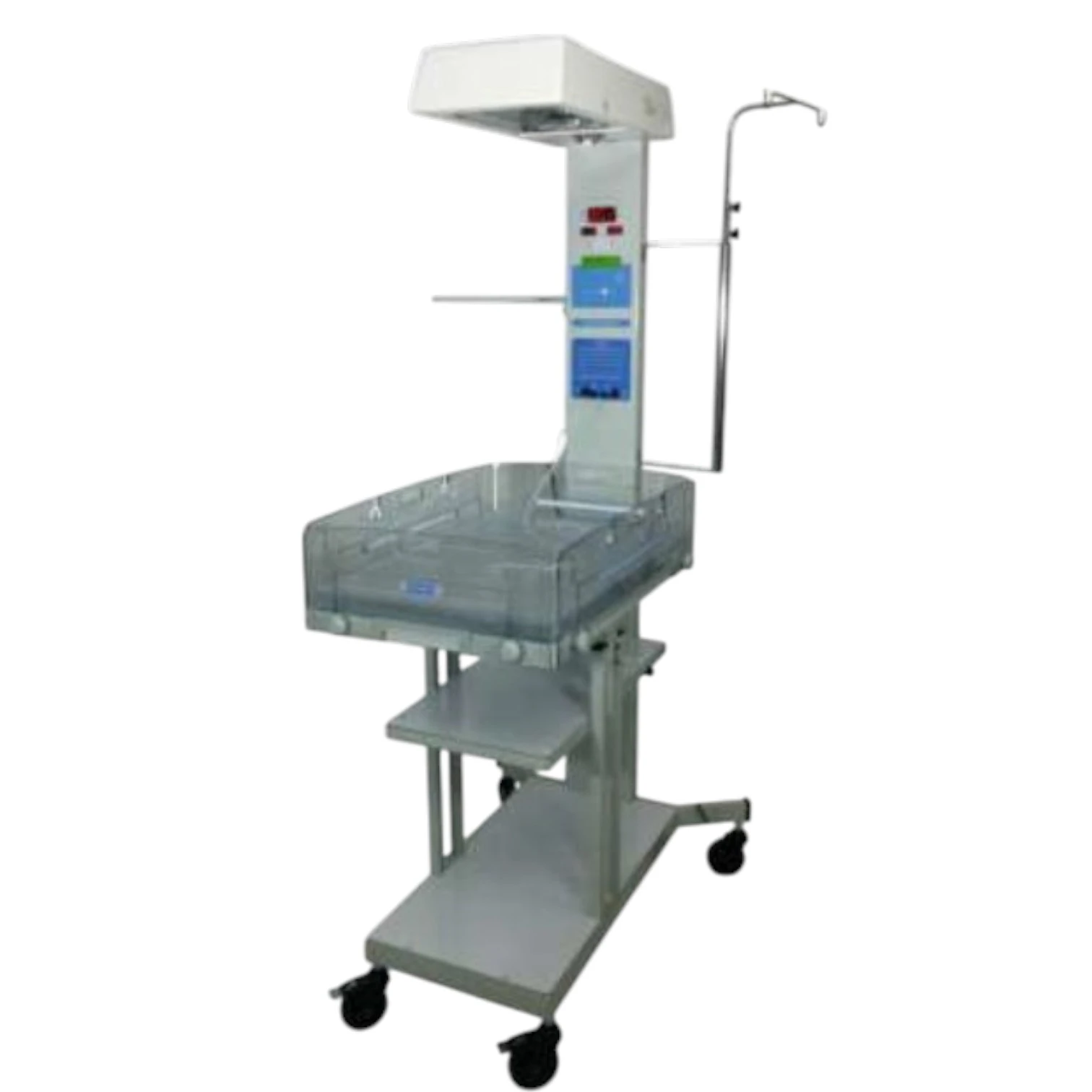

• Fixed height warmer with attached baby cradle

mounted on 4" (100mm) wheels, 2 with brake

• Stainless steel baby tray with water proof, zipped

cover mattress of density approx. 21-25 kg/m³

• Continuous head up/down facility

• X-Ray cassette holder

• Collapsible/lockable Side Supports made up of

Unbreakable polycarbonate material

• Slots for sensor and ventilator tubing

• Side tray for placement of monitor

• Stainless steel infusion rod with facility to mount

Syringe/infusion pump

• Lower shelf below baby tray to facilitate under

surface phototherapy.

• Height : 74.5" (1890 mm), Width : 28.0" (710 mm),

Length : 39.0" (990 mm)

• Bed to Floor Height : 37.5" (950 mm)

• Distance between baby bed and heater: 33" (840

mm)

• Mattress size: 30" (762 mm) x 20" (508 mm)

• Height of side panel above baby bed: 5.75" (145

Performance/Electrical Specifications :

• Microprocessor based temperature controller with Pre-warm, Manual and Skin Servo modes

• LED Display of Skin Temp., Set Temp. (Resolution 0.1°C) & Heater Power %.

• LCD to display modes of operation, Alarm messages, Skin Temperature in °F and Timer.

• Thermistor based sensor with Accuracy of +/- 0.2°C (Temp. Calibration not require)

• Modes of Operation: Skin Servo, Manual and Pre-Warm

• Keypad lock facility

• Skin mode: Temperature range: 34 to 38°C , Resolution : 0.1°C

• Manual mode: Adjustable Heater Power 0 to 100% (with an increment of 5%), Time duration:15mins

• Pre-warm mode: To pre-warm the cradle before baby is placed on the bed. (No alarm will be activated

during Prewarm mode) Adjustable Heater Power 0 to 25% (with an increment of 5%), Time

duration:30mins

• Overhead heater box: Swivelling, Consists of Ceramic heater (650 Watts) placed in parabolic reflector

with a safety grill & Halogen observation light (12V/50W) for observing the baby

• Operating Voltage: 220-240 VAC, 50Hz, Power: 800W (Max.)

• Alarm: Audio alarm with 10 minute mute facility & Visual alarms with message on LCD as follows

Alarm Condition : Alarm Messages on LCD

Skin Sensor is unplugged /Faulty : SKIN SENSOR FAIL

Measured skin temperature higher than set temperature by 1.0°C : SKIN TEMP. HIGH

Measured skin temperature lower than set temperature by 1.0°C : SKIN TEMP. LOW

Measured skin temperature higher than 38.0°C (With cut-off) : SKIN OVER RANGE

Measured skin temperature lower than 34.0°C : SKIN UNDER RANGE

Heater power is 100% for more than 15mins : CHK SENS POSITION

Heater is unplugged or faulty : HEATER OPEN

Heater Power drive fail/uncontrollable : CHK. PWR. DRIVE

Power Fail Alarm: Audio with LED indicator
