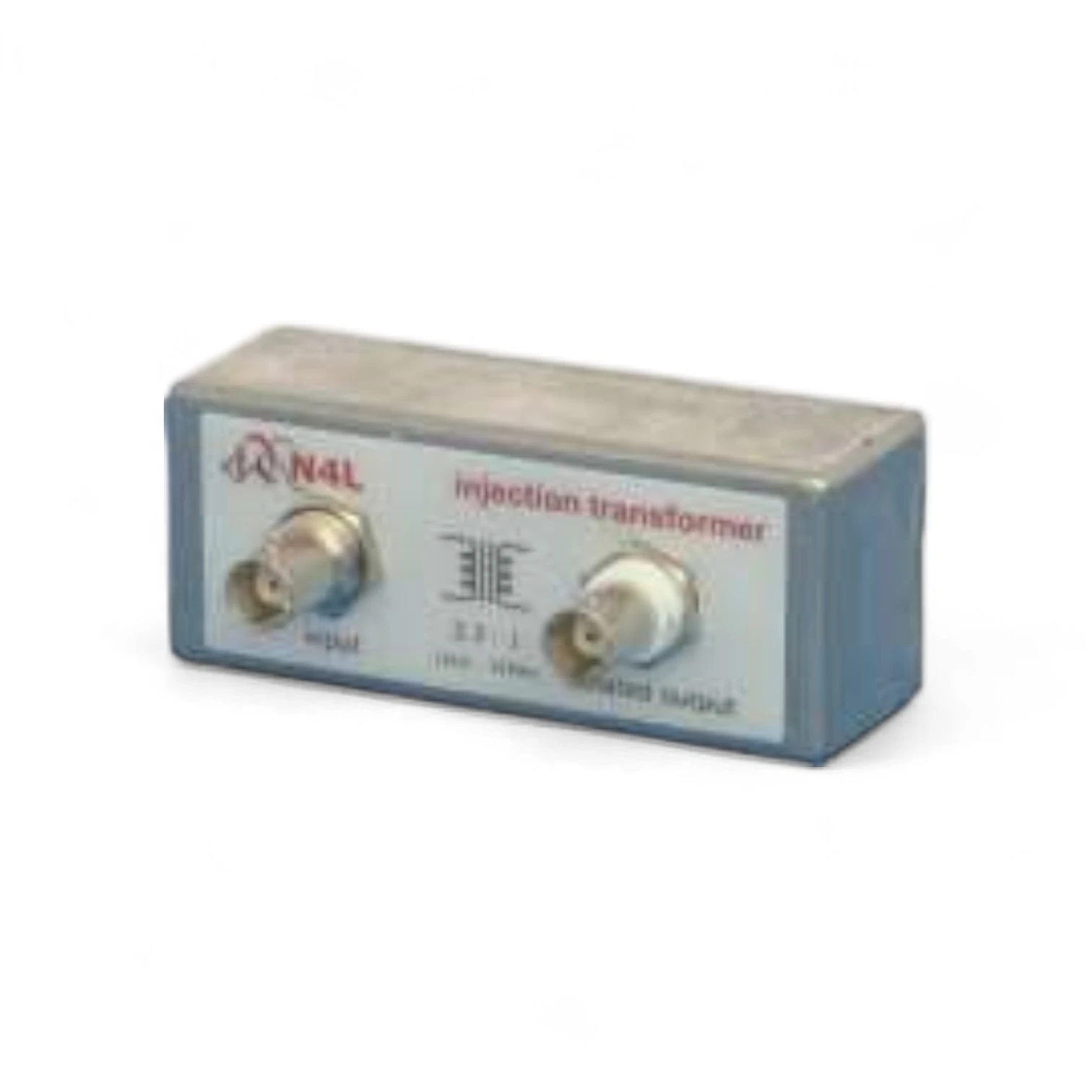

Injection Transformer – 1kHz to 35MHz

The Injection Transformer is a high-performance signal coupling device designed for frequency range testing from 1kHz to 35MHz. It is commonly used in control loop stability measurements, Bode plot testing, and electromagnetic compatibility (EMC) analysis such as conducted immunity tests. Its wide bandwidth ensures distortion-free signal injection without disrupting the operational integrity of the device under test.

Engineered for precision and reliability, this transformer enables safe and isolated injection of test signals into feedback loops, power electronics, and low impedance circuits. Compatible with network analyzers and frequency response analyzers, it is ideal for engineers performing frequency-domain system characterization.

Key Features:

• Frequency range: 1kHz to 35MHz

• High signal fidelity and isolation

• Ideal for control loop and Bode plot testing

• Suitable for EMC immunity test applications

• Robust construction and stable performance

• Compatible with most signal generators and analyzers
