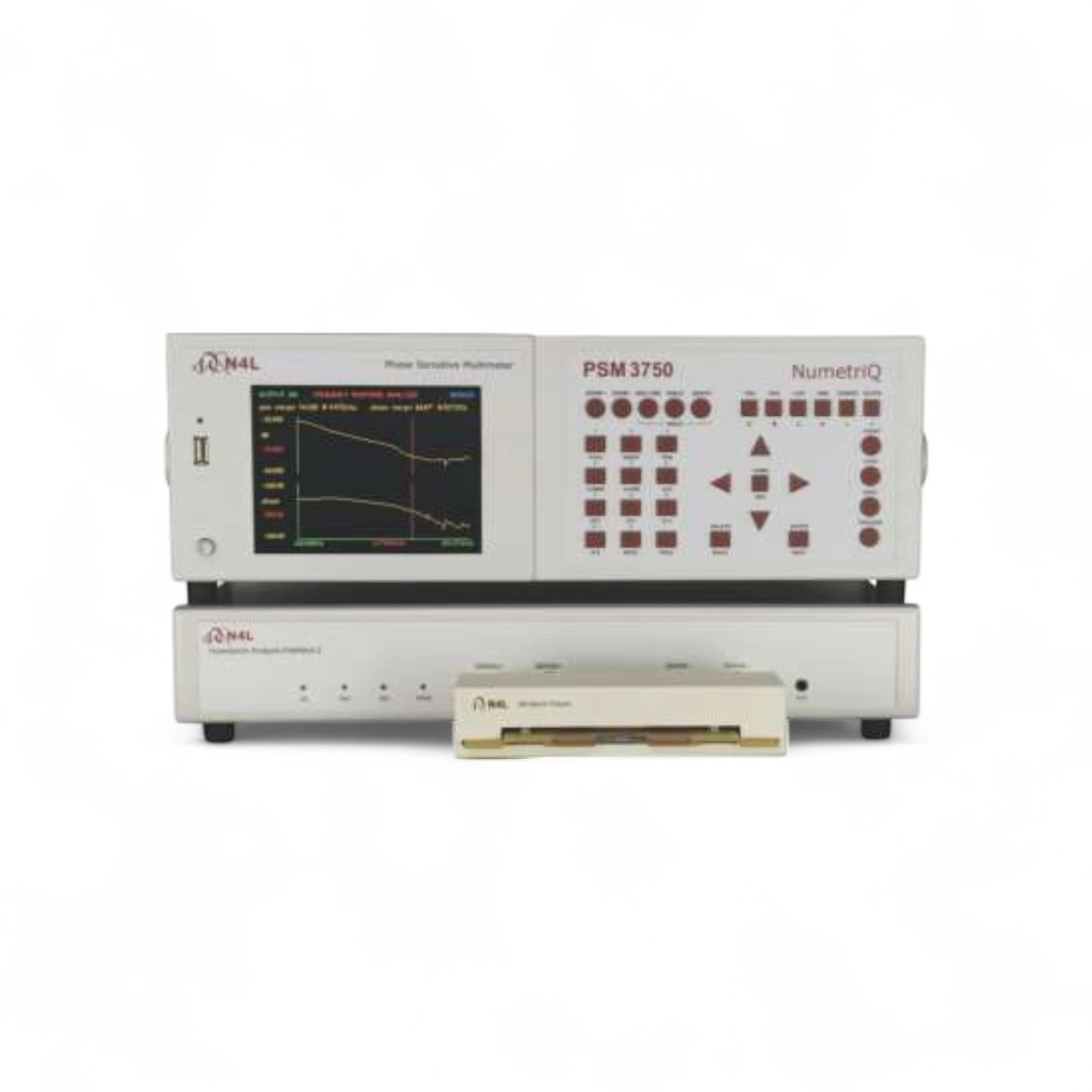

The Impedance Analyzer is a high-precision instrument designed to measure and analyze complex electrical parameters such as inductance (L), capacitance (C), resistance (R), quality factor (Q), impedance (Z), dissipation factor (Tan Delta), and phase angle (θ) with remarkable accuracy and resolution.

With a test frequency range from 1 µHz to 50 MHz and 0.1% basic accuracy, this analyzer is ideal for material characterization, passive component testing, and advanced R&D applications in electronics, automotive, aerospace, and academic sectors. The device supports wide impedance ranges, versatile test fixtures, and intuitive control software for comprehensive data visualization and export.

Key Features:

Measured Parameters: L, C, R, Q, Z, Tan Delta, θ (Phase Angle)
Frequency Range: 1 µHz to 50 MHz
Accuracy: ±0.1%
Sweep Types: Frequency, Voltage, Current
High Resolution Display with Graphing
PC Connectivity for Data Logging & Analysis
Ideal for Material Analysis, Component Characterization, and Quality Control
