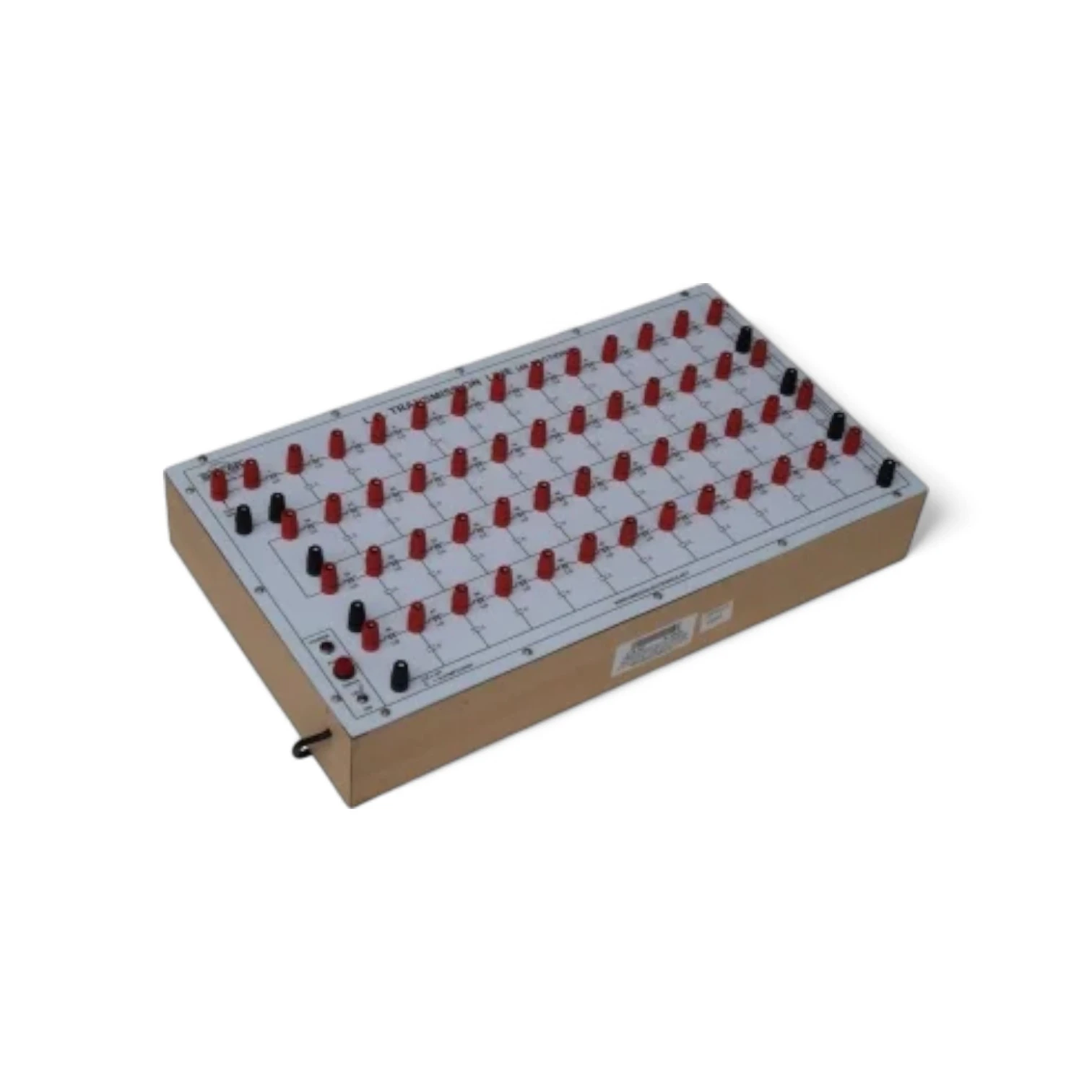

The ETB-192 L.C. Transmission Line Trainer is an advanced educational setup designed to demonstrate the characteristics and behavior of a discrete transmission line model using 48 inductance (L) and capacitance (C) sections. This trainer is ideal for studying the propagation of electrical signals, reflection phenomena, characteristic impedance, and transient responses in a controlled environment.

It allows students to analyze how a signal travels through a transmission line composed of lumped L and C elements, emulating the distributed nature of real transmission lines. The 48-section design offers high granularity, enabling detailed observation of wave propagation, delay, and attenuation over the line.

The model is highly suitable for undergraduate and postgraduate students in electrical, electronics, and communication engineering, as well as physics.

Key Features:

• 48 sections of lumped inductance and capacitance

• Study of wave propagation, reflections, and line termination effects

• Demonstrates characteristic impedance and time-domain behavior

• Suitable for use with oscilloscope or signal generator

• Clearly labeled test points for intermediate section measurement

• Ideal for signal transmission, EM wave, and RF circuit analysis
