ETB-130 (Model Study of Complimentary-Symmetry Transistor Power Amplifier with

(0) 0 Reviews 0 Orders 0 Wish listed

₹12,000.00

Quantity :
Total price :
  (Tax : )

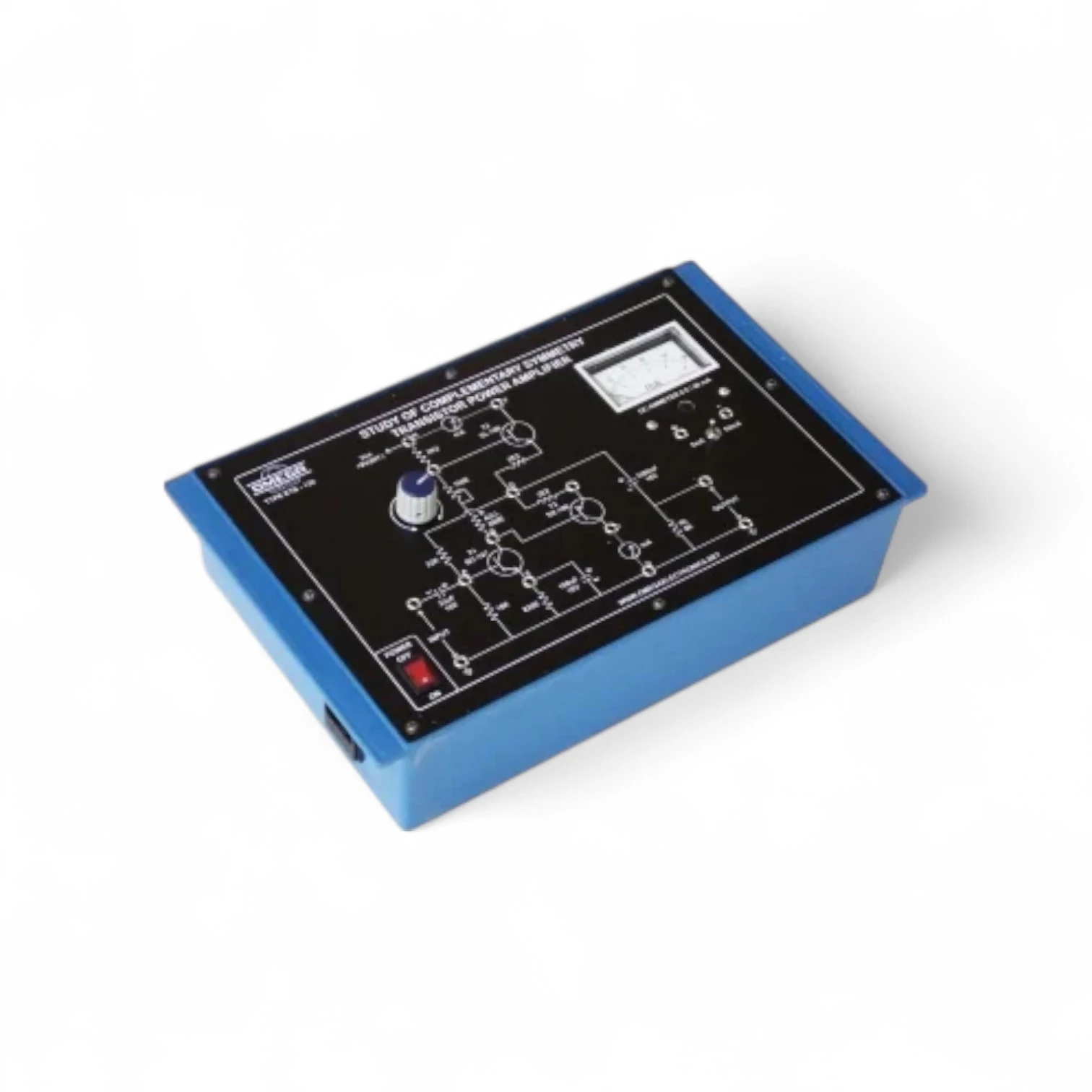

ETB-130 – Study of Complementary-Symmetry Transistor Power Amplifier with Power Supply is a specialized trainer designed to demonstrate the working of a Class B complementary-symmetry transistor power amplifier, commonly used in audio amplification due to its efficiency and low distortion.

This model helps students understand the principle of push-pull amplifier configuration using complementary NPN and PNP transistors. It facilitates experiments related to input/output waveform analysis, crossover distortion, power efficiency, and heat dissipation characteristics of transistor power amplifiers.

The built-in power supply and test points make it easy to analyze voltage gain, waveform symmetry, and overall behavior of the amplifier stage under different signal conditions.

Key Features:

  • Demonstrates Class B complementary-symmetry power amplifier configuration

  • Push-pull operation using NPN and PNP transistors

  • Built-in regulated power supply for hassle-free lab setup

  • Clearly marked test points for waveform observation and analysis

  • Facilitates study of crossover distortion and thermal behavior

  • Ideal for analog, audio, and power electronics courses
