ETB-129 (Model Study of Direct Coupled Amplifier and its frequency response wit

(0) 0 Reviews 0 Orders 0 Wish listed

₹15,000.00

Quantity :
Total price :
  (Tax : )

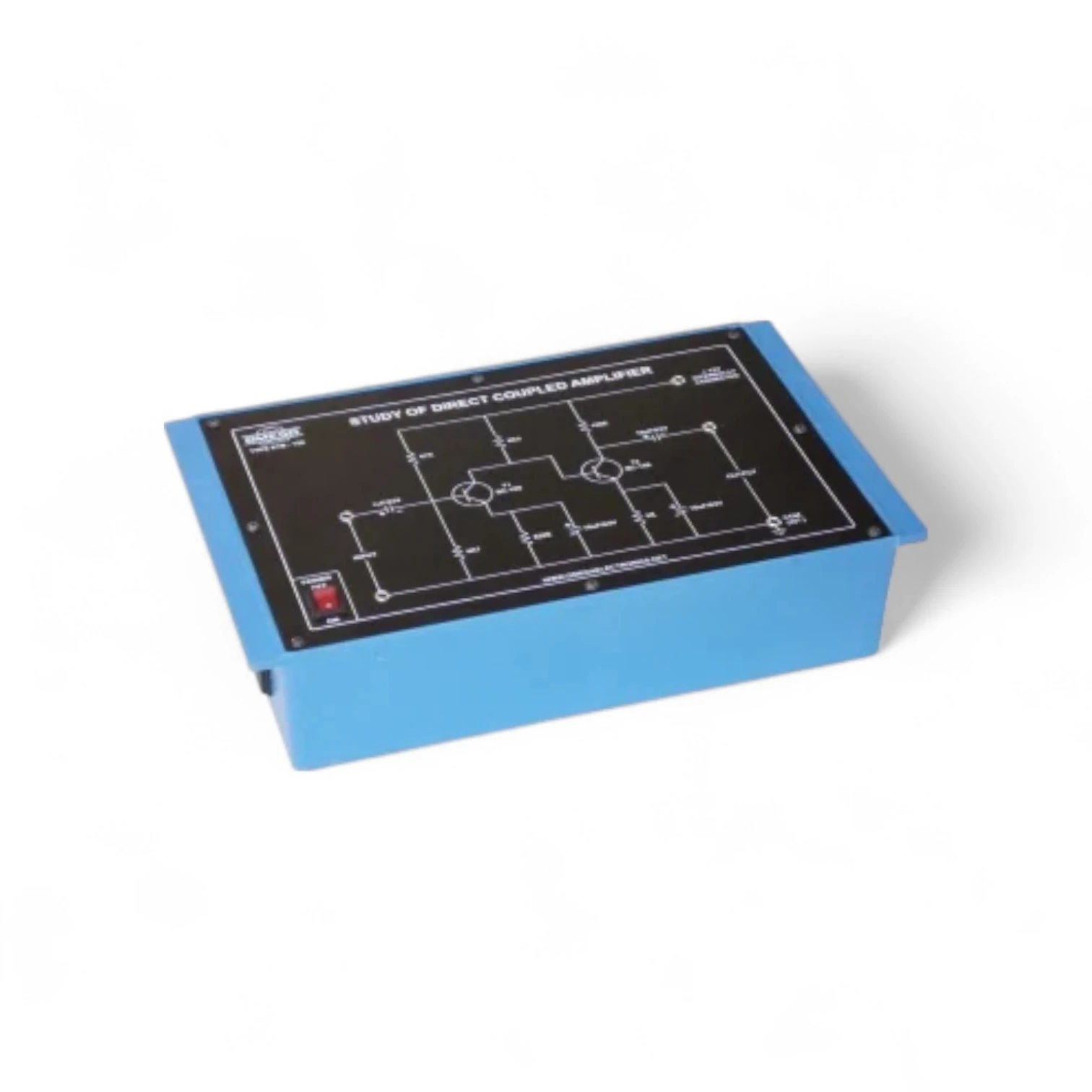

ETB-129 – Study of Direct Coupled Amplifier and its Frequency Response with Power Supply is a laboratory training system designed to explore the operation and behavior of a direct coupled (DC) amplifier. Unlike capacitive or transformer-coupled amplifiers, a direct coupled amplifier transmits both AC and DC components, making it useful in low-frequency and biomedical applications.

This trainer allows students to analyze the voltage gain, DC operating point, and especially the frequency response of direct coupled stages. It comes with a built-in regulated power supply, test points for voltage measurement, and terminals for external signal input and output monitoring via an oscilloscope.

Key Features:

  • Demonstrates the structure and function of a direct coupled amplifier

  • Facilitates detailed analysis of gain and frequency response

  • Useful for studying amplifier stability and drift due to temperature changes

  • Built-in power supply and signal interfacing terminals

  • Clear identification of input/output stages and biasing components

  • Ideal for analog electronics, biomedical instrumentation, and signal conditioning courses
