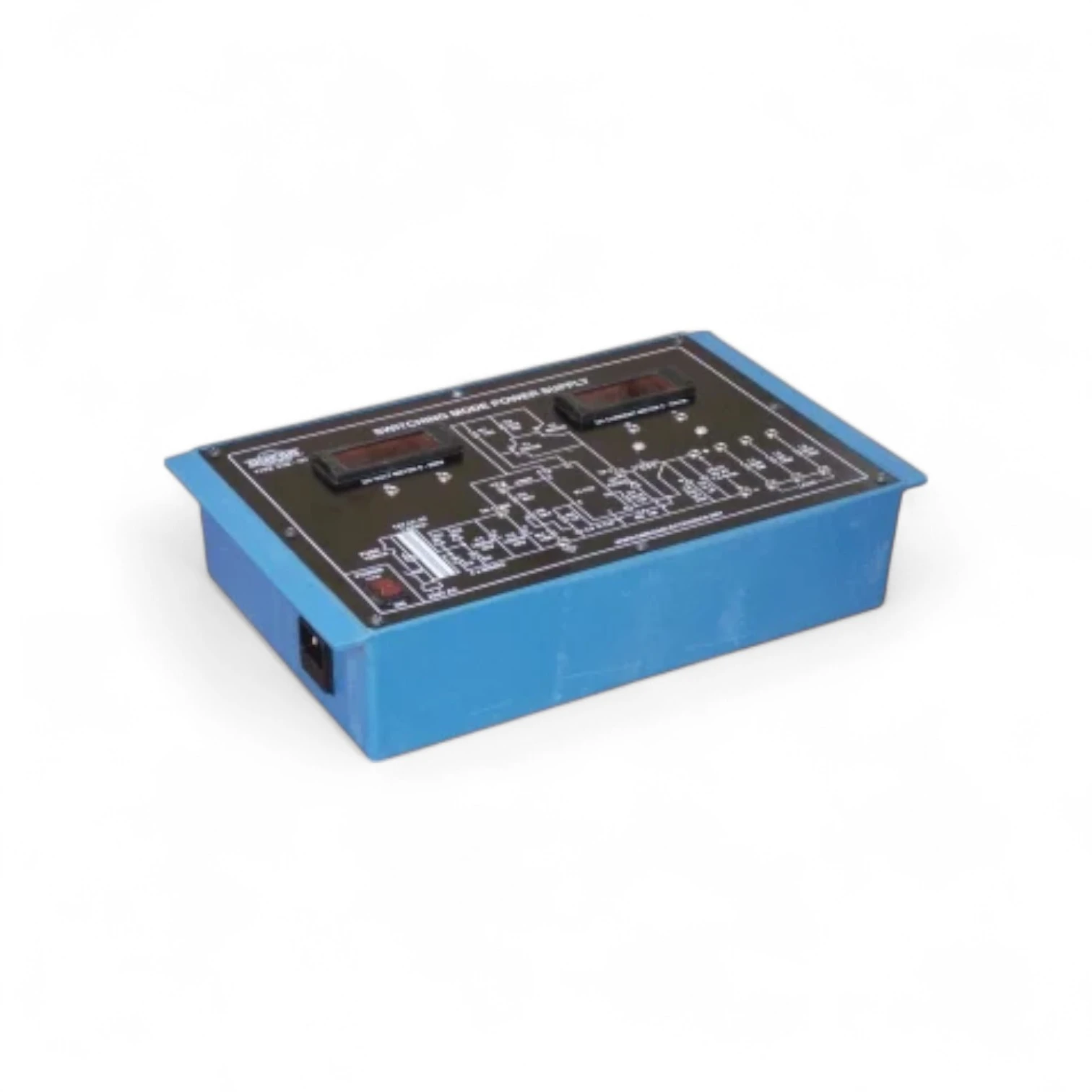

ETB-107 (Model Switching Mode Power Supply (SMPS) with 2 meters)

(0) 0 Reviews 0 Orders 0 Wish listed

₹12,000.00

Quantity :
Total price :
  (Tax : )

ETB-107 – Switching Mode Power Supply (SMPS) with 2 Meters is a practical and instructional training kit designed to demonstrate the working principle and internal circuitry of a Switch Mode Power Supply (SMPS). This model is ideal for studying the conversion of electrical power using high-frequency switching technology, which offers greater efficiency compared to traditional linear power supplies.

The trainer is equipped with two in-built meters to monitor voltage and current at key points, and provides clear test points to facilitate in-depth analysis and waveform observation using an oscilloscope.

Key Features:

  • Demonstrates the working of SMPS using high-frequency switching

  • Study of input AC to regulated DC output conversion

  • Includes two meters for voltage and current monitoring

  • Enables waveform analysis of switching stages

  • Compact and educational layout for easy circuit tracing

  • Helps understand energy storage elements: inductors, transformers, capacitors

  • Ideal for power electronics and advanced electronics labs
