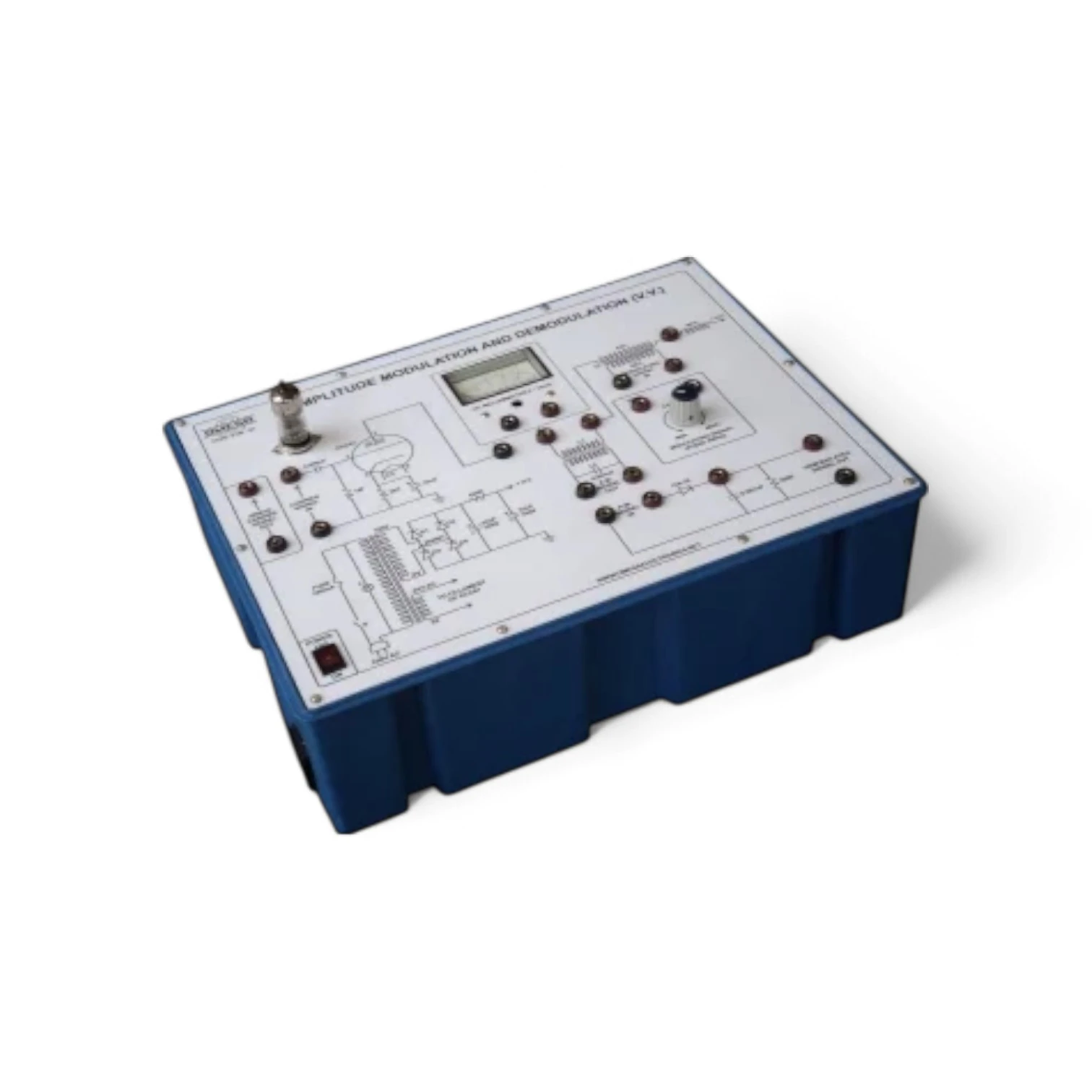

ETB-097 (Model Amplitude Modulation and Demodulation with power supply, oscilla

(0) 0 Reviews 0 Orders 0 Wish listed

₹10,000.00

Quantity :
Total price :
  (Tax : )

ETB-097 – Amplitude Modulation and Demodulation Trainer with Power Supply and Oscillator is an advanced version of the AM trainer system, incorporating both carrier and modulating signal oscillators for complete in-house signal generation. This allows students to study amplitude modulation without requiring external signal sources. It demonstrates modulation of a high-frequency carrier by a lower-frequency audio signal and subsequent demodulation using envelope detection or diode detectors.

This unit includes a regulated power supply, inbuilt audio and carrier oscillators, and accessible test points for waveform observation via a CRO. It is ideal for hands-on learning in analog communication systems.

Key Features:

  • Complete AM modulation and demodulation setup with built-in oscillators

  • Integrated carrier and modulating signal sources

  • Demonstrates envelope detection and recovery of the original signal

  • Built-in regulated DC power supply

  • Test points provided for waveform observation and frequency analysis

  • Clear and educational circuit layout with component labeling

  • Suitable for analog communication, signal processing, and electronics courses
