ETB-091 (Model Hybrid Parameters of a Transistor with power supply 1KHz, oscill

(0)

0 Reviews

100 In Stock

₹12,000

Qty

Total price: ₹12,000

Details description

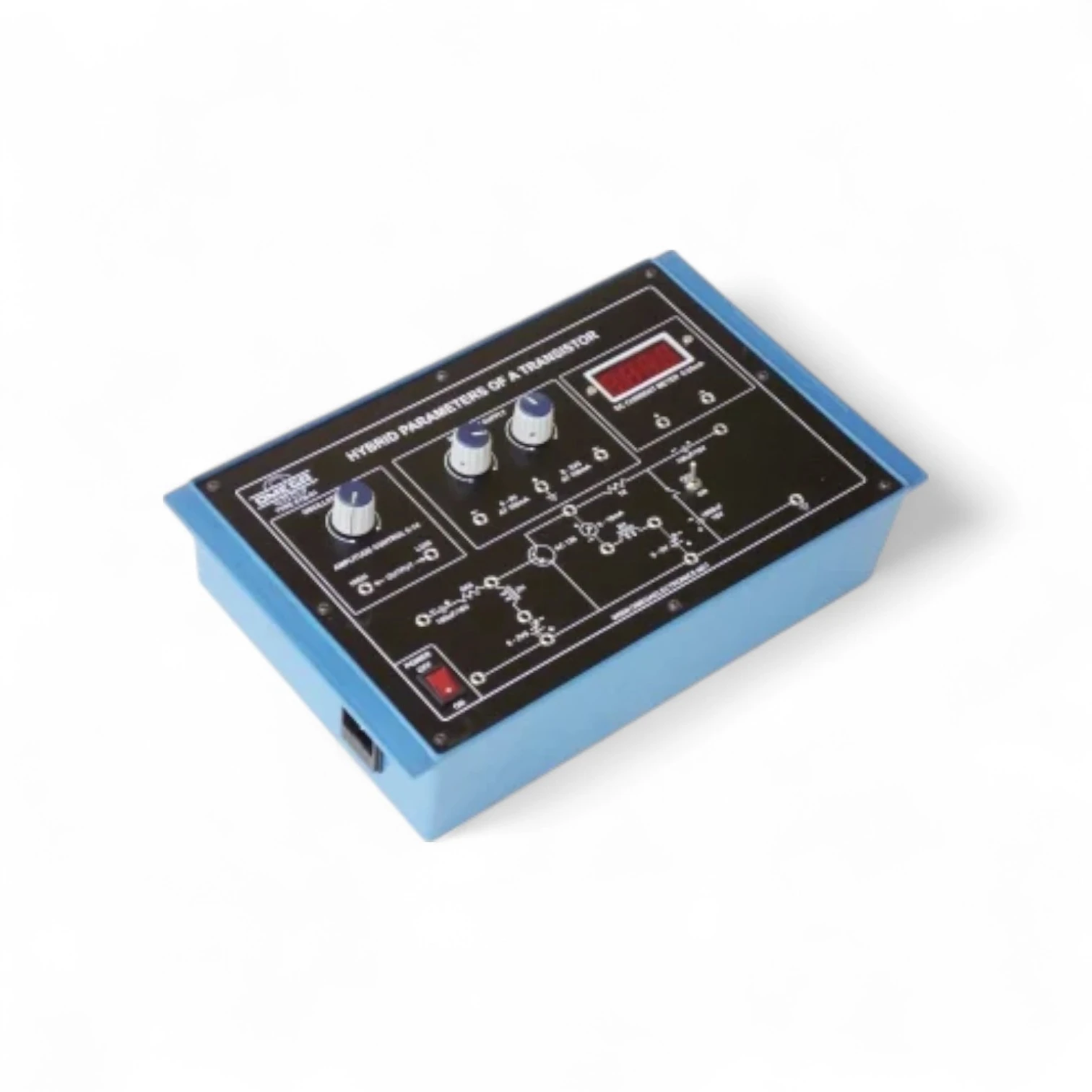

ETB-091 – Hybrid Parameters of a Transistor with Power Supply, 1kHz Oscillator, and Meters is a specialized trainer designed to help students experimentally determine the h-parameters (h₁₁, h₁₂, h₂₁, h₂₂) of a transistor in common emitter configuration. These hybrid parameters are essential for small-signal analysis and transistor modeling. The trainer features an integrated 1kHz oscillator, a regulated power supply, and built-in meters for voltage and current measurements. This setup provides hands-on learning of theoretical concepts from analog electronics. Key Features: Demonstrates experimental determination of hybrid parameters of a transistor Designed for common emitter configuration Built-in regulated DC power supply and 1kHz oscillator for signal injection Meters included for precise voltage and current measurements Supports analysis of input/output impedance and current/voltage gains Clear front panel layout with test points and circuit blocks Ideal for analog electronics, device modeling, and BJT characterization labs

Details description

ETB-091 – Hybrid Parameters of a Transistor with Power Supply, 1kHz Oscillator, and Meters is a specialized trainer designed to help students experimentally determine the h-parameters (h₁₁, h₁₂, h₂₁, h₂₂) of a transistor in common emitter configuration. These hybrid parameters are essential for small-signal analysis and transistor modeling. The trainer features an integrated 1kHz oscillator, a regulated power supply, and built-in meters for voltage and current measurements. This setup provides hands-on learning of theoretical concepts from analog electronics.

Key Features:
