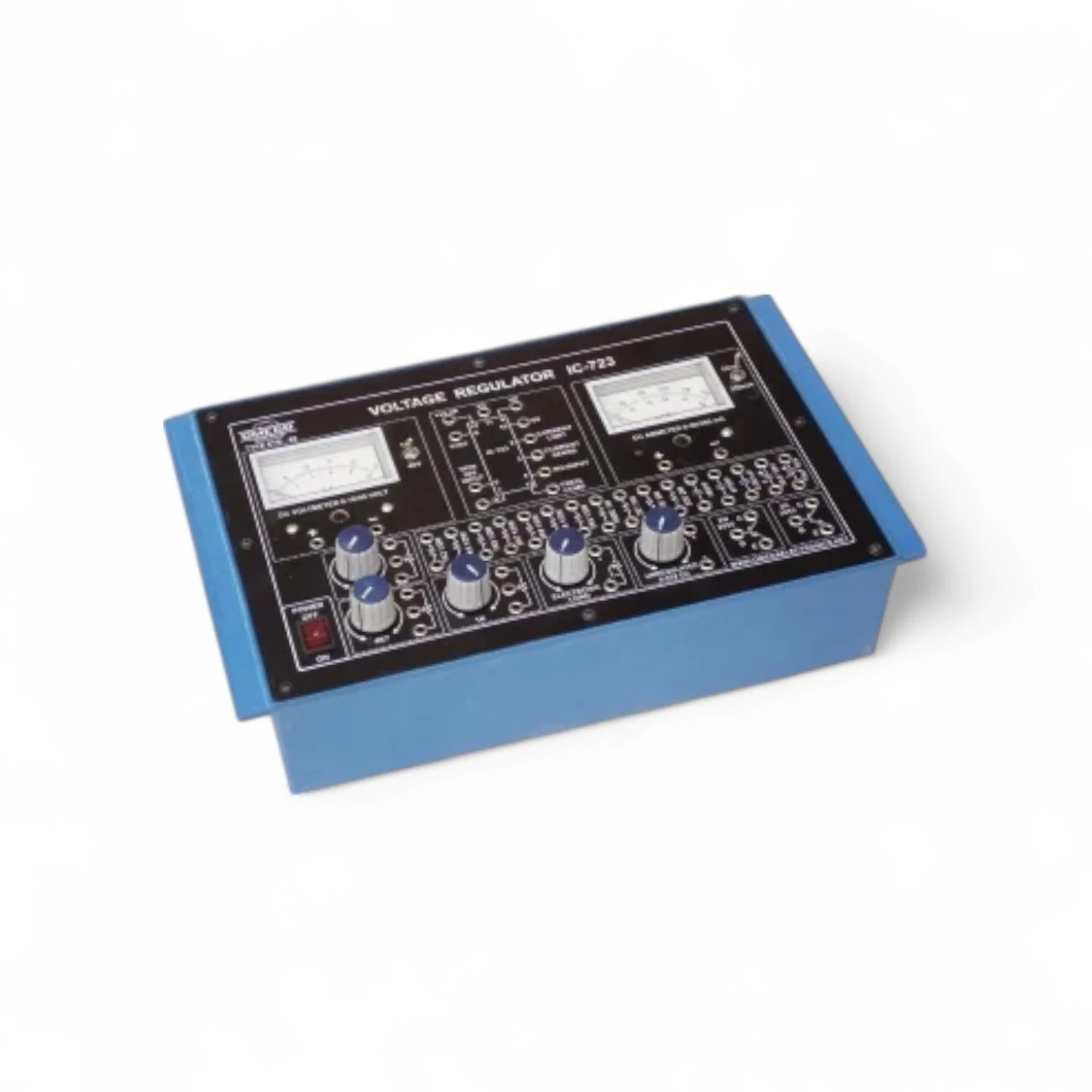

ETB-086 (Model Voltage Regulator IC 723 with power supply and 2 dual range mete

(0) 0 Reviews 0 Orders 0 Wish listed

₹15,000.00

Quantity :
Total price :
  (Tax : )

ETB-086 – Voltage Regulator using IC 723 with Power Supply and 2 Dual Range Meters is an educational trainer designed to demonstrate the working and characteristics of the IC 723 voltage regulator. The trainer allows students to configure and analyze both linear and switching voltage regulation circuits using the versatile IC 723. It comes equipped with a regulated power supply and two dual-range meters for measuring input/output voltage and current—ideal for detailed observation and analysis in power electronics and analog circuit labs.

Key Features:

  • Demonstrates the use of IC 723 for voltage regulation

  • Allows both high-voltage and low-voltage regulator configurations

  • Built-in regulated power supply ensures stable operation

  • Two dual-range meters for precise monitoring of voltage and current

  • Enables study of line regulation, load regulation, and ripple rejection

  • Clear test points and circuit layout for ease of experiment

  • Essential for power electronics, analog circuits, and control systems labs
