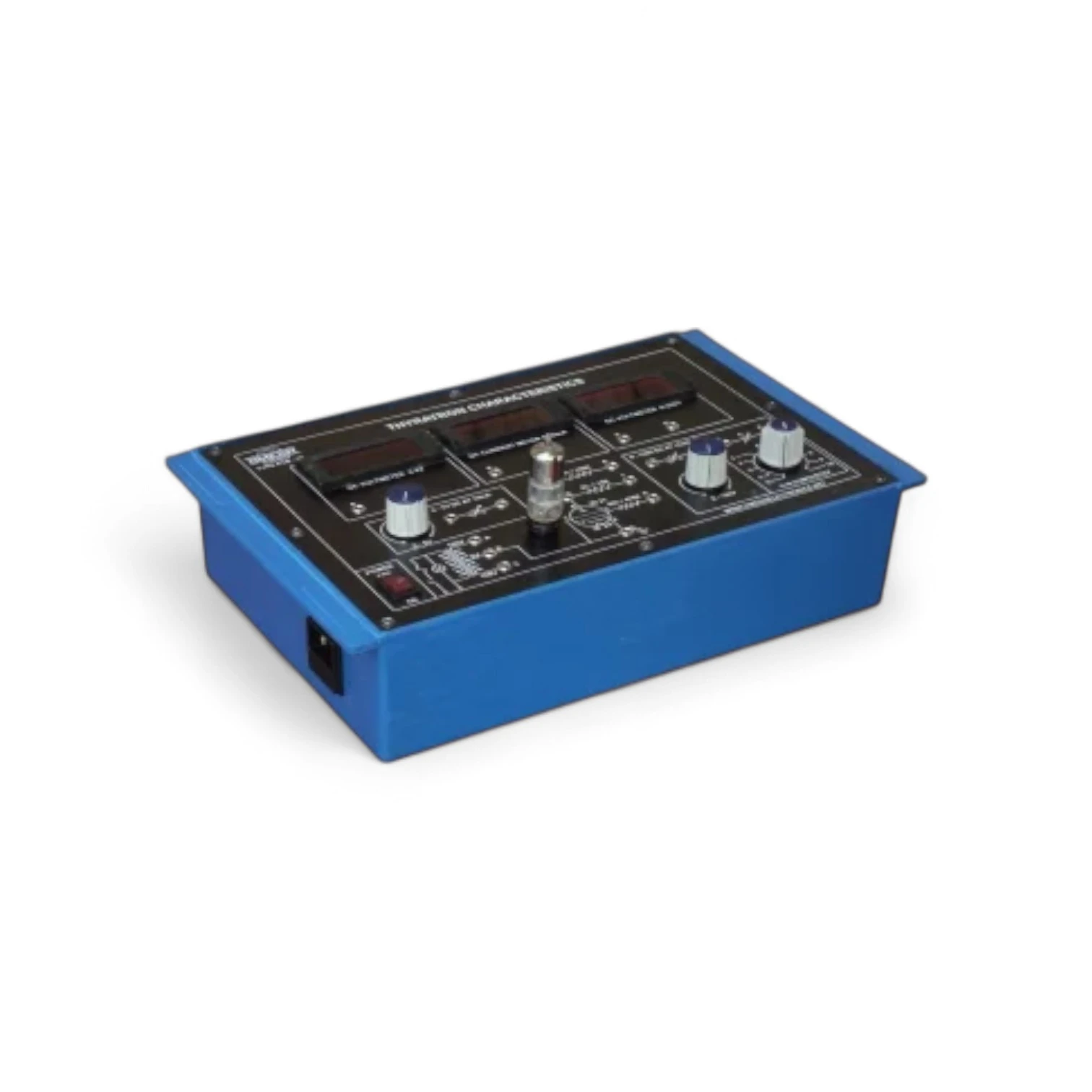

The ETB-080 trainer is developed to study the static characteristics of a thyratron tube, a gas-filled controlled rectifier widely used in early high-power switching and control applications. This model provides a comprehensive setup to examine the anode and grid voltage-current relationships, triggering behavior, and conduction characteristics.
Equipped with a built-in power supply and three measuring meters, the system offers precise monitoring of anode voltage, grid voltage, and tube current. The C.R. (Complete Ready) configuration ensures plug-and-play functionality, making it ideal for classroom demonstrations and practical sessions in physics and electronics engineering labs.
Key Features:
Demonstrates V-I characteristics of thyratron tubes
Built-in regulated power supply for stable operation
Includes 3 meters for real-time parameter monitoring
C.R. design for hassle-free setup and experimentation
Helps students understand triggering, ionization, and conduction phases
Suitable for advanced electronics, vacuum tube studies, and power electronics labs
