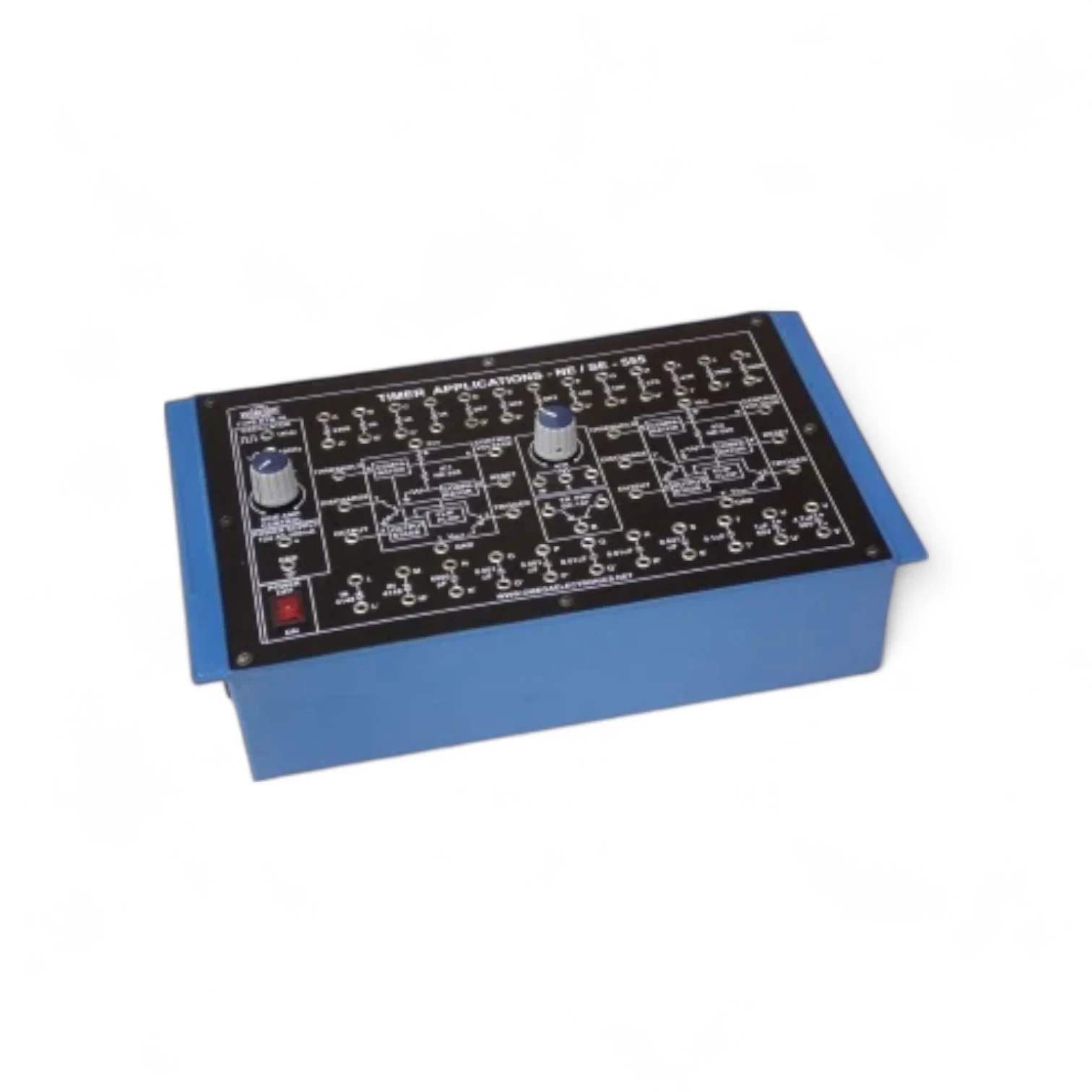

ETB-076 – Timer Applications IC-555 No. 1 with Power Supply and Oscillator is an educational trainer developed to explore the fundamental applications of the IC-555 timer, one of the most versatile and widely used integrated circuits in electronics. This trainer demonstrates various configurations such as astable multivibrator, monostable multivibrator, and square wave generation. It includes a built-in regulated power supply and 1kHz oscillator, making it ideal for both theory verification and hands-on experimentation in academic settings.

Key Features:

• Demonstrates core applications of the IC-555 timer

• Configurations include astable, monostable, and square wave generator modes

• Built-in power supply and 1kHz oscillator for signal input/output study

• Facilitates analysis of time delays, pulse widths, and frequency generation

• On-board test points for oscilloscope and multimeter connections

• Suitable for analog electronics, digital circuits, and embedded systems labs

• Compact and robust design for frequent educational use
