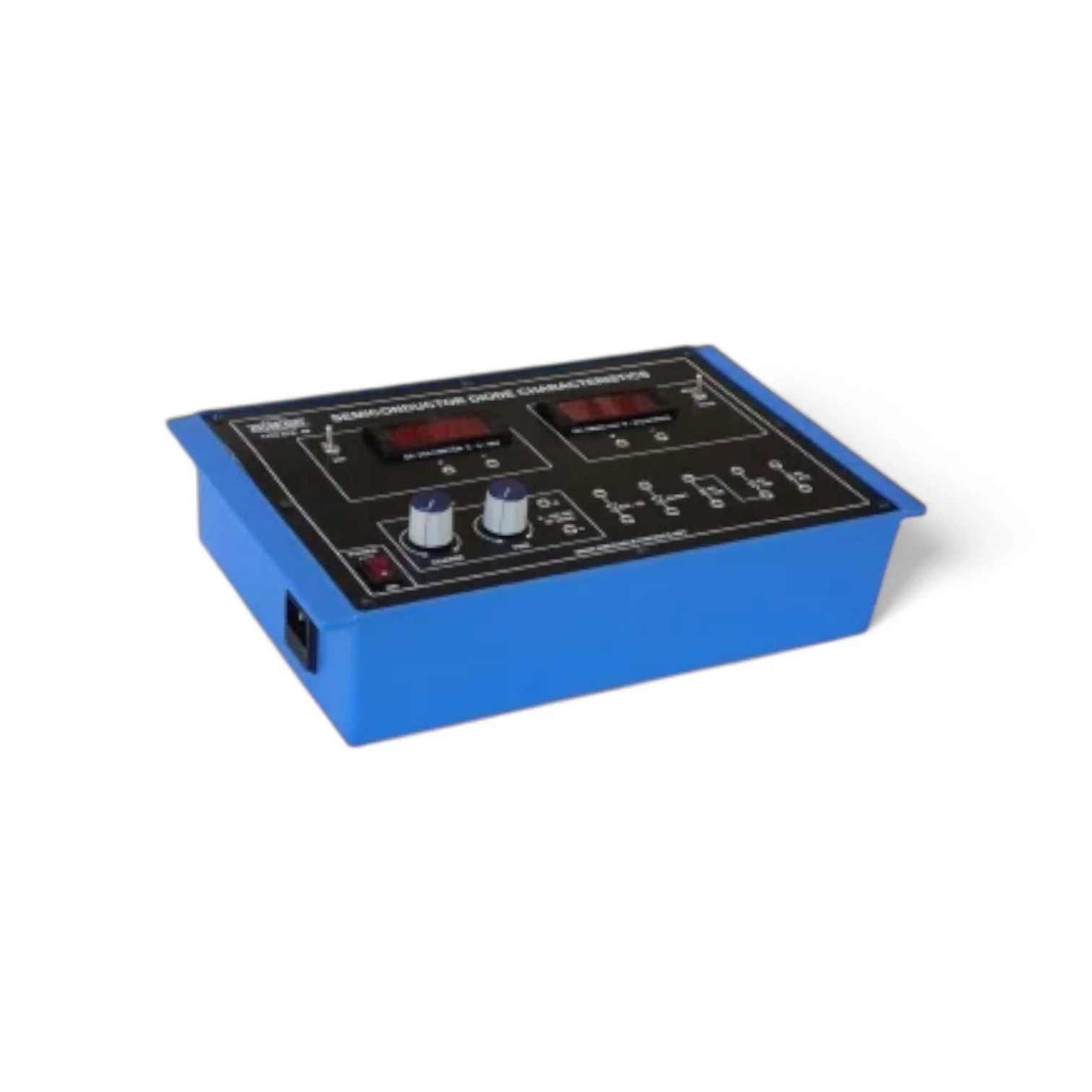

ETB-068 Semi-Conductor Diode Characteristics with power supply and 2 dual range

(0) 0 Reviews 0 Orders 0 Wish listed

₹25,000.00

Quantity :
Total price :
  (Tax : )

The ETB-068 trainer is designed to experimentally study the forward and reverse bias characteristics of a semiconductor diode, a fundamental component in modern electronics. It helps students clearly understand VI characteristics, knee voltage, reverse breakdown, and the basic functionality of diodes.

This model is equipped with a regulated power supply and two dual-range meters for precise voltage and current measurements. The C.R. (Complete Ready) configuration ensures ease of use, making it an ideal choice for basic electronics labs in schools, colleges, and training institutes.

Key Features:

  • Demonstrates forward and reverse bias characteristics of a diode

  • Includes 2 dual range meters for accurate measurement

  • Built-in regulated power supply for stable performance

  • C.R. model for plug-and-play lab experimentation

  • Helps study cut-in voltage, dynamic resistance, and breakdown region

  • Ideal for basic electronics, physics, and semiconductor labs
