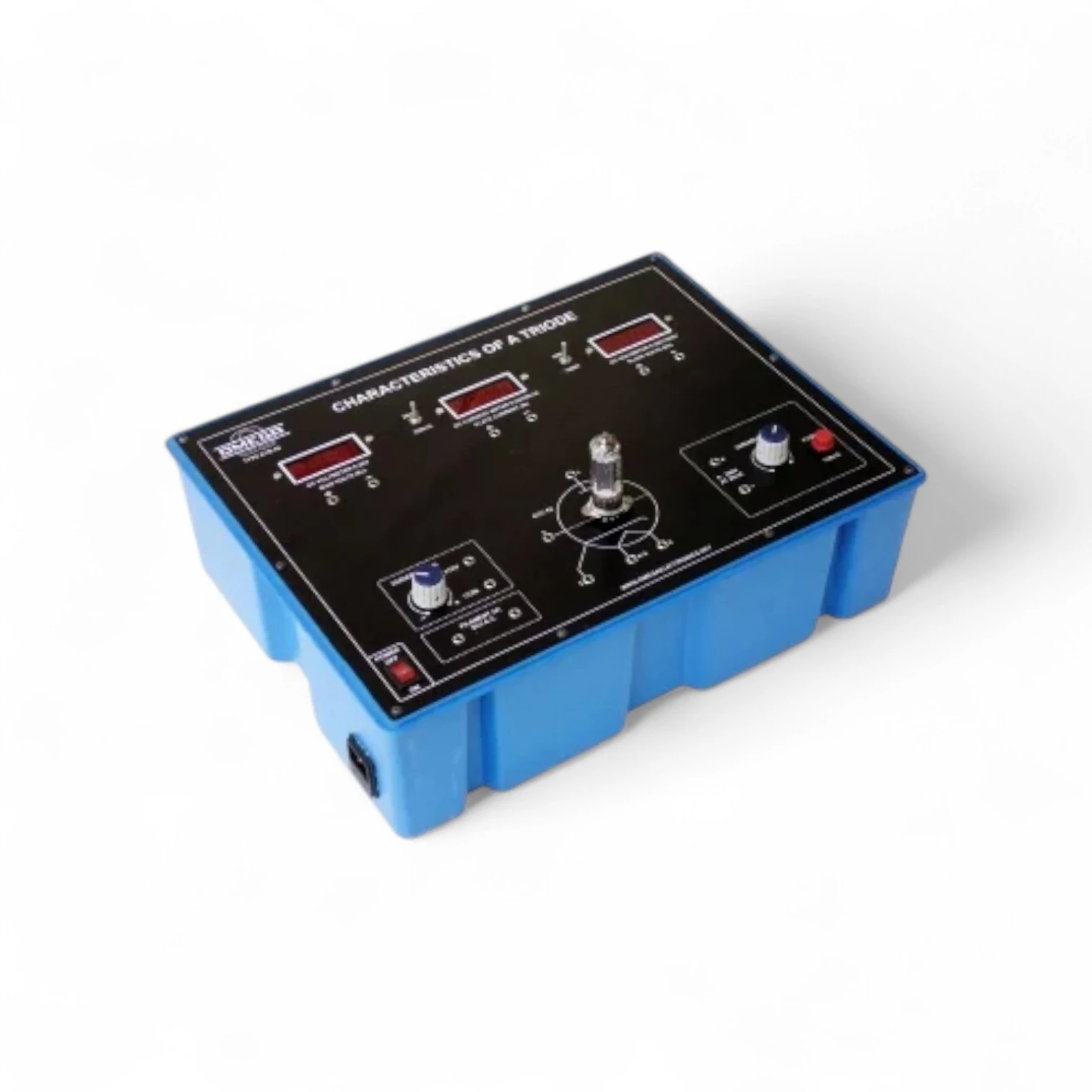

ETB-049 (Model Triode Characteristics with power supply and 2 meters (C.R.) (V.V

(0) 0 Reviews 0 Orders 0 Wish listed

₹15,000.00

Quantity :
Total price :
  (Tax : )

The ETB-049 trainer is developed to study and analyze the characteristics of a triode vacuum tube under various operating conditions. This model allows students to understand the relationship between anode voltage, grid voltage, and anode current — fundamental for learning about vacuum tube amplifiers and analog electronics.

It includes a built-in regulated power supply, 2 precision meters, and convenient test points to facilitate measurements. The model is provided in Complete Ready (C.R.) and Verified Version (V.V.), ensuring long-term reliability and suitability for institutional use.

Key Features:

  • Study of anode characteristics and mutual characteristics of a triode

  • Includes built-in power supply and 2 measuring meters

  • Clear layout with test terminals for easy connection and readings

  • Ideal for analog electronics, vacuum tube theory, and amplifier design courses

  • Supplied in C.R. (Complete Ready) and V.V. (Verified Version) formats

  • Widely used in physics and electronics laboratories
