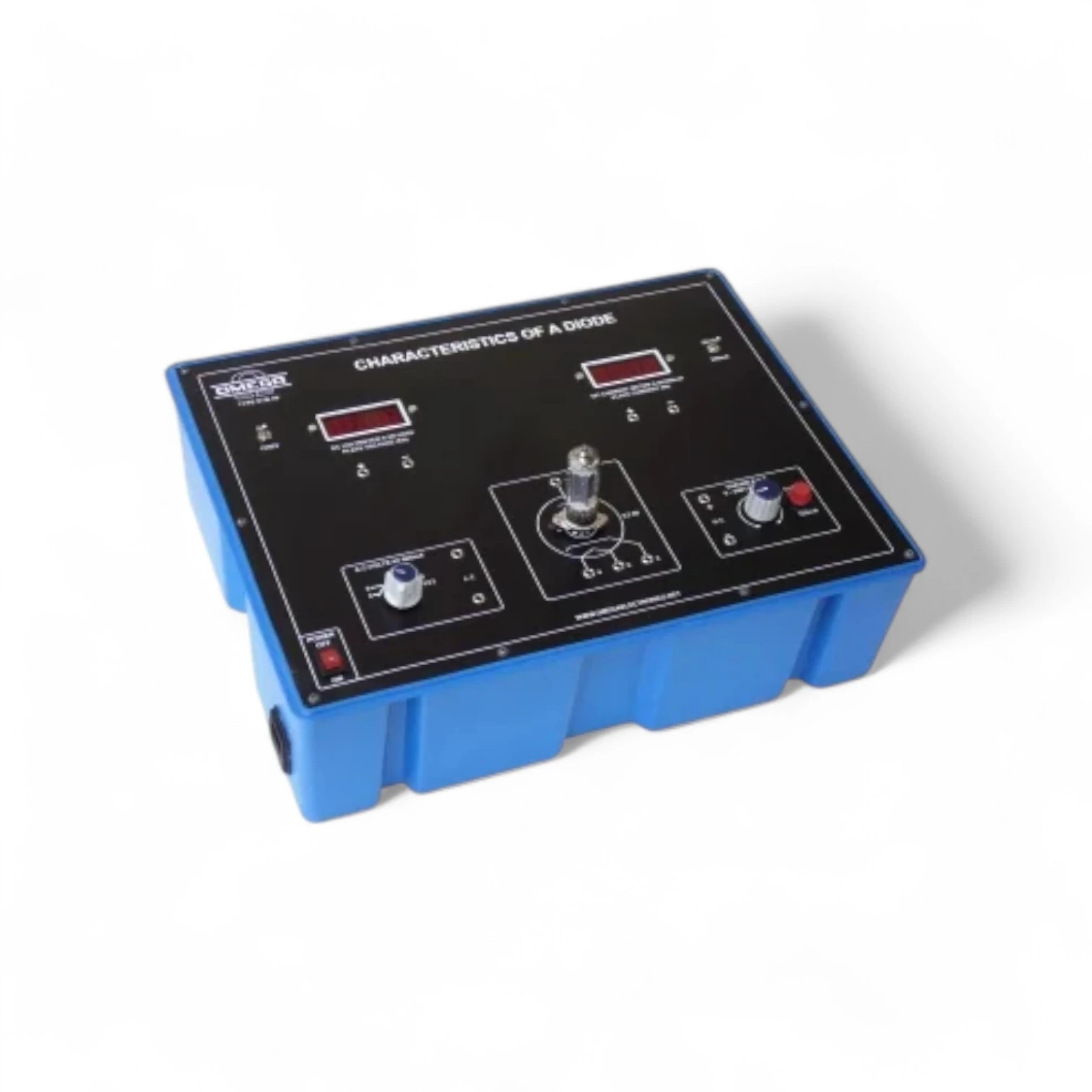

ETB-048 (Model Diode Characteristics with power supply and 2 meters (C.R.) (V.V)

(0) 0 Reviews 0 Orders 0 Wish listed

₹14,000.00

Quantity :
Total price :
  (Tax : )

The ETB-048 trainer is designed for in-depth analysis of the V-I characteristics of semiconductor diodes. It allows students to study both forward bias and reverse bias behavior of a diode using built-in components and measurement meters. This setup is essential for foundational learning in semiconductor electronics.

Equipped with a regulated power supply, 2 high-precision meters, and clearly labeled terminals, the trainer helps in plotting accurate voltage-current curves. The unit is available in Complete Ready (C.R.) and Verified Version (V.V.) formats for high reliability in educational institutions.

Key Features:

  • Study of forward and reverse bias V-I characteristics

  • Built-in regulated power supply and 2 analog/digital meters

  • Clear front panel layout for easy observation and measurement

  • Suitable for basic electronics, diode theory, and circuit labs

  • C.R. (Complete Ready) and V.V. (Verified Version) certified

  • Ideal for technical schools, colleges, and university labs
