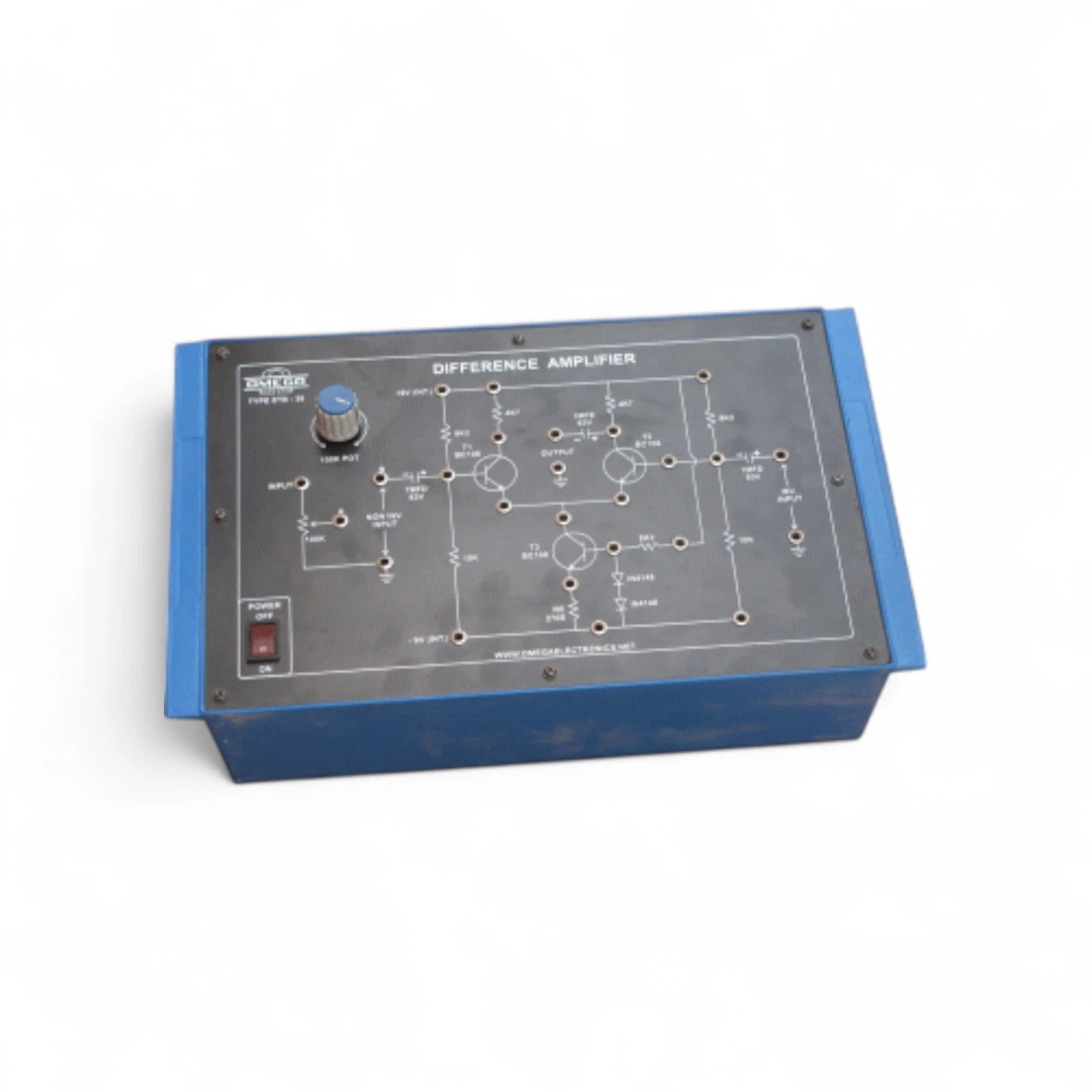

ETB-039 (Model Differential Amplifier with power supply)

(0) 0 Reviews 0 Orders 0 Wish listed

₹12,000.00

Quantity :
Total price :
  (Tax : )

The ETB-039 Differential Amplifier Trainer is a comprehensive educational tool designed to demonstrate the working of a differential amplifier using transistors. This trainer allows students to explore the key parameters such as differential gain, common-mode gain, and Common Mode Rejection Ratio (CMRR).

It includes a built-in regulated power supply, clearly labeled test points, and high-quality components, making it ideal for analog electronics laboratories and transistor-level amplifier analysis.

Key Features:

  • Complete study of differential amplifier using transistors

  • Allows measurement of differential and common-mode gain

  • Enables calculation of CMRR

  • Built-in regulated power supply

  • Well-labeled circuit for easy understanding and waveform observation

  • Ideal for engineering colleges, polytechnic labs, and technical institutes
