ETB-030.1 (Model Series & Parallel Resonance (with oscillator and A.F. voltmete

(0) 0 Reviews 0 Orders 0 Wish listed

₹18,000.00

Quantity :
Total price :
  (Tax : )

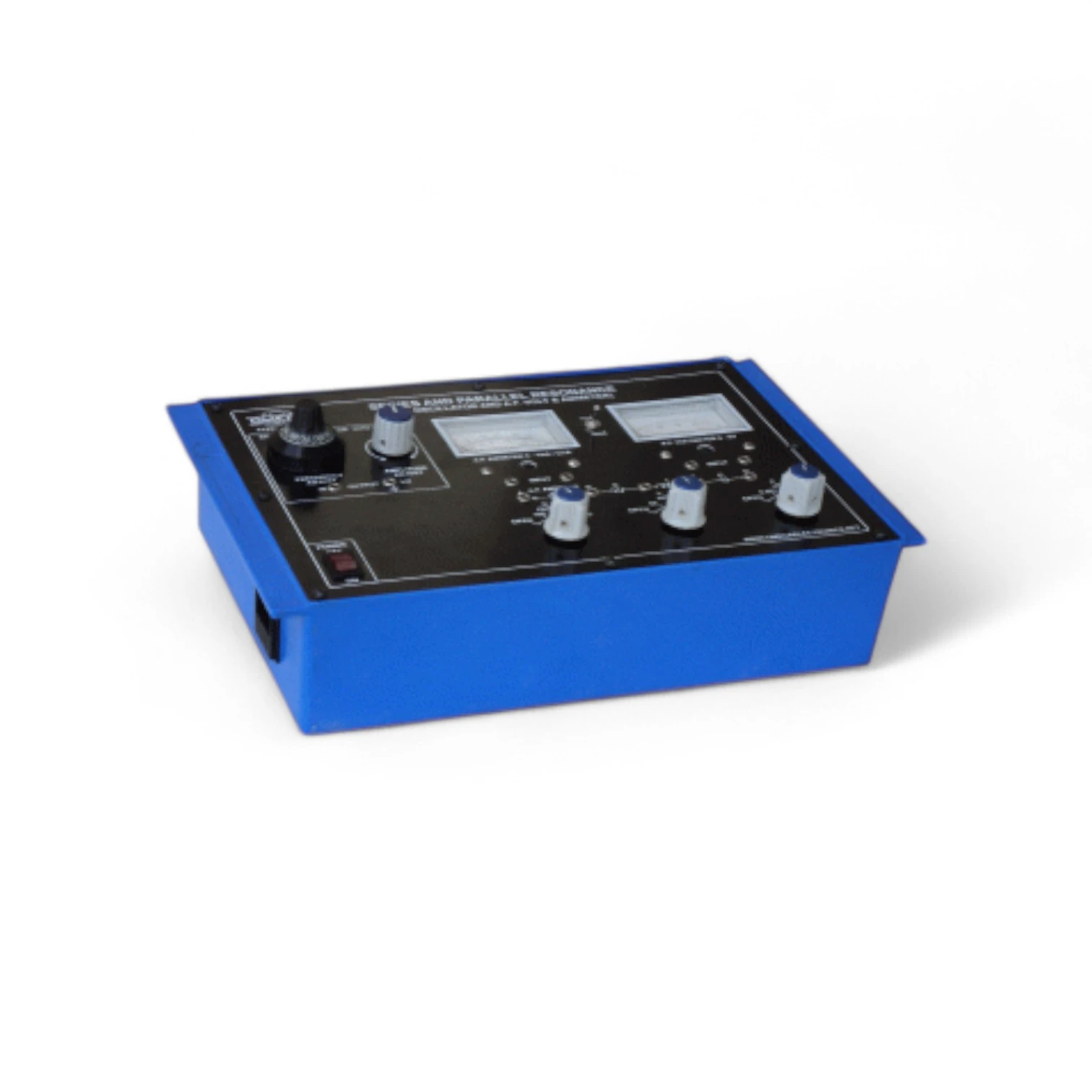

The ETB-030.1 Series & Parallel Resonance Trainer is a dedicated lab setup designed to study the phenomena of resonance in RLC circuits under both series and parallel configurations. It comes equipped with an inbuilt oscillator and an Audio Frequency (A.F.) voltmeter, enabling students to observe the frequency response and resonance conditions accurately.

This model helps users analyze resonant frequency, bandwidth, Q-factor, and the variation of current and voltage with frequency, making it ideal for in-depth analog circuit experiments.

Key Features:

  • Facilitates study of series and parallel resonance in RLC circuits

  • Built-in oscillator for frequency variation

  • Integrated A.F. voltmeter for output voltage measurement

  • Enables observation of resonance curve, bandwidth, and Q-factor

  • High-quality components and test points provided

  • Suitable for electronics, electrical, and communication engineering labs
