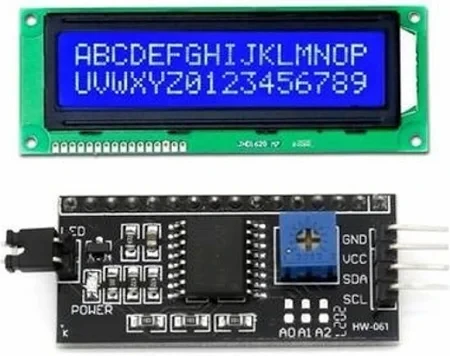

The 16×2 (1602) and 20×4 (2004) I2C LCD displays are character-based alphanumeric displays commonly used in IoT, embedded systems, and research prototypes for real-time data visualization.

By default, these LCDs use a parallel interface requiring 6–8 pins, but with the I2C interface module (PCF8574 I/O expander), they can be controlled using just 2 pins (SDA & SCL), making them ideal for Arduino, ESP32, Raspberry Pi, and STM32 projects.

• Variants:

  • 1602 (16×2) → Displays 2 lines × 16 characters each

  • 2004 (20×4) → Displays 4 lines × 20 characters each

• Key Features:

  • Display Type: Character LCD (Alphanumeric)

  • Characters: 16×2 (32 characters) or 20×4 (80 characters)

  • Interface: I2C (PCF8574 IC) → reduces wiring

  • Operating Voltage: 5V DC

  • Backlight: LED (Blue/Green with White text)

  • Contrast: Adjustable via onboard potentiometer

  • Communication: Uses standard LiquidCrystal_I2C library in Arduino IDE

  • Power Consumption: Low (typically <2mA without backlight, ~20mA with backlight)

• Applications:

  • Research projects requiring real-time display of sensor values (temperature, pressure, gas, etc.)

  • Embedded system debugging (status messages)

  • IoT devices where compact & low-pin display is needed

  • Robotics, automation, and lab experiments for user interaction

In research environments, I2C LCDs are popular because they save GPIO pins, are easy to program, and provide a reliable way to display outputs locally without needing a serial monitor.
